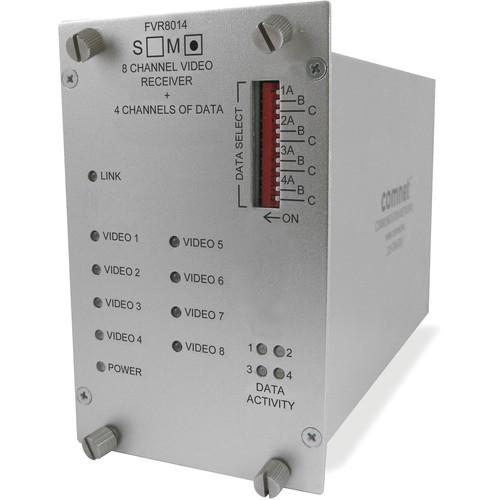

User Manual for COMNET FVR8014M1 8-Channel Digital Video 4 Bi-Directional Data Receiver for FVT8014M1 Transmitter Click to enlarge the picture
Contents of the user manual for the COMNET FVR8014M1 8-Channel Digital Video 4
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET FVR8014M1 8-Channel Digital Video 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT/FVR8014(M)(S)1 Series transmits eight (8) channels of 10-Bit Digital Video along with four (4) channels of bi-directional data over one single mode or multimode optical fiber. The video quality exceeds RS-250C for medium-haul video transmission. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVT/FVR8014 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and RS485 (2 & 4 Wire) data. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-Color LED indicators are provided to indicate the status of the system, video and data. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. No additional parts or power supplies are required. -
- 10-bit digital video transmission: transmits 8 real-time color video signals and 4 bi-directional data signals on one optical fiber
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Exceeds all requirements for EIA RS-250C medium-haul transmission
- Hot-swappable rack modules
UPC: 845770003994 In the Box COMNET FVR8014M1 8-Channel Digital Video / 4 Bi-Directional Data Receiver for FVT8014M1 Transmitter FVR8014M1 Video Encoder 5 x RJ45 Breakout Wiring Kit Power Supply Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET FVR8014M1 8-Channel Digital Video 4 Bi-Directional Data Receiver for FVT8014M1 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR8014M1 Specs | | | Height | 3.3" | | Width | 5.3" | | Depth | 6.1" | | | | Compatibility | Connectors: | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | Country of Origin | United States |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
