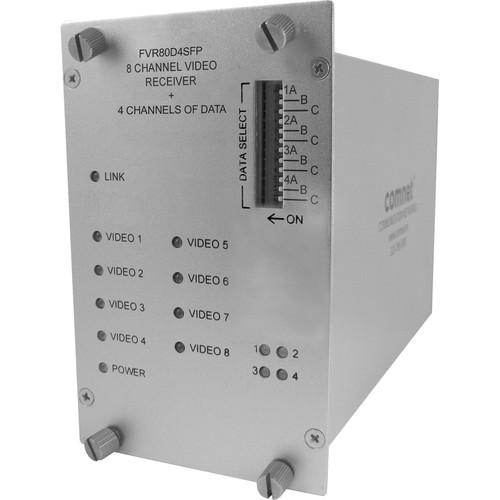

Product description The FVR80D4SFP Optical Video Link Receiver from ComNet provides reception of eight 10-bit short-haul quality digital video channels and four bi-directional data channels through a selectable small form factor pluggable module (module not included). The data channels support RS232, RS422, and 2/4-wire RS485. Plug-and-play design ensures ease of installation and no electrical or optical adjustments. -
- Up to eight 10-bit digital video channels
- Four bi-directional data channels
- Uses interchangeable SFPs for fiber type, distance, and connector
- Exceeds all requirements for RS-250C short-haul transmission
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments
- Fully compliant with the environmental requirements of NEMA TS-2 for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output line provide protection from voltage surges and other transient events
- Bi-color LED status indicators confirm operating status
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount when used with ComFit (not included)
- Made in USA
In the Box COMNET FVR80D4SFP Optical Video Link Receiver (8-Channel Digital Video + 4-Channel Bi-Directional Data) Power Supply 5 x RJ45 Breakout Wiring Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET FVR80D4SFP Optical Video Link Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR80D4SFP Specs | | | Video Input | 1 Vpp (75 Ohms) | | Overload | Up to 1.5 Vpp | | Channels | 8 | | Bandwidth | 5 Hz to 6.5 MHz | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | S/N Ratio | 67 dB @ maximum optical loss budget | | Wiring Distance | 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | | | Channels | 4 | | Interface | RS232, RS422, and RS485 (2/4 wire) | | Format | NRZ, NRZI, Manchester, Bi-phase, and Sensornet | | Data Rate | 0 to 250 kbps (NRZ) | | | | Optical | SFP modules | | Power | Terminal block | | Video | BNC | | Data | 5 x RJ45 | | | | LEDs | 1 x Fiber status
1 x Video output sync presence
1 x Received data
1 x Transmitted data
1 x Power | | Power | 8 to 15 VDC | | Current Consumption | 5 W | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | | | MTBF | 100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 0 to 95% (non-condensing) | | | | Dimensions | 6.1 x 5.3 x 2.2" (15.5 x 13.5 x 5.6 cm) | | Weight | 1 lb (0.45 kg) | Note: Optical specs are SFP module dependent. SFP module is not included.
