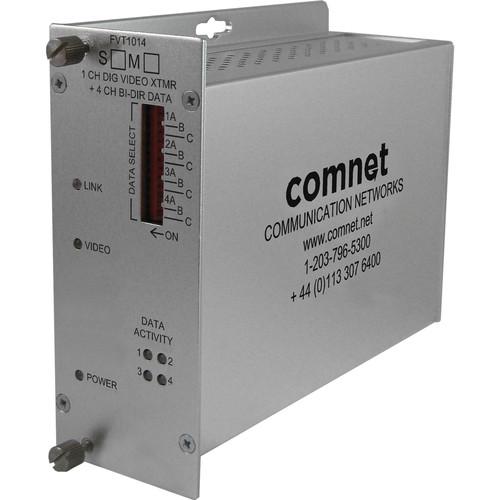

User Manual for COMNET FVT1014M1 1-Channel Digital Video Transmitter & 4-Channel Data Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET FVT1014M1 1-Channel Digital Video Transmitter
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET FVT1014M1 1-Channel Digital Video Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The FVT1014M1 1-Channel Digital Video Transmitter & 4-Channel Data Transceiver from ComNet utilizes 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C short-haul video transmission. It provides transmission of one independent video channel and four bidirectional data channels over one optical fiber up to 2 miles. This video transmitter unit is universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. The data channels can be set independently for RS-232, RS-422, and 2- or 4-wire RS-485 with tri-state support. This environmentally hardened unit is suitable for use in unconditioned roadside or out-of-plant installations. Its plug-and-play design ensures ease of installation with no electrical or optical adjustments required. It features bicolor (red/green) LED indicators for rapidly ascertaining equipment operating status. Housed in a ComFit housing, the unit can be either wall or rack mounted. It can also be DIN-rail mounted using the DINBKT1 adapter plate (available separately). - Compatible With
- All NTSC, PAL, or SECAM CCTV camera systems
- 10-bit digital video transmission—transmits one real-time color video signal and four bi-directional data signals on one optical fiber
- Supports RS-232, RS-422, and 2- or 4-wire RS-485 with tri-state data interfaces
- High video performance—meets the requirements of EIA RS-250C short-haul transmission
- Low video distortion with zero performance variation verses optical path loss
- Suitable for networks requiring multiple physical layers where video degradation may be a problem
- Complies with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment, such as ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures high reliability in unconditioned out-of-plant environments
- Bicolor (red/green) LED status indicators provide rapid indication of critical operating parameters
- Interchangeable between stand-alone or rack mount use, thanks to the ComFit housing
- Application includes high-performance CCTV (fixed video)
In the Box COMNET FVT1014M1 1-Channel Digital Video Transmitter & 4-Channel Data Transceiver 9 VDC Plugin Power Supply (90 to 264 VAC, 50/60 Hz) 5 x RJ45 Breakout Wiring Kit (Including Cable and Terminal Block) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET FVT1014M1 1-Channel Digital Video Transmitter & 4-Channel Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT1014M1 Specs | Video Input | 1 V p-p (75 Ohms) | | Overload | >1.5 V p-p | | Number of Channels | Input/Output: 1 | | Bandwidth | Minimum: 10 Hz to 6.5 MHz per channel | | Differential Gain | <2% | | Differential Phase | <0.7˚ | | Tilt | <1% | | Signal-to-Noise Ratio (SNR) | 67 dB typical | | Maximum Distance | Maximum RG-59 Coax Distance: 300' / 100 m camera to fiber optic module to maintain 6 MHz bandwidth | | Data Channels | 4 | | Data Interface | RS-232, RS-422, and RS-485 (2/4 W) | | Data Format | NRZ, NRZI, Manchester, Bi-Phase and Sensornet | | Data Rate | DC-250 kb/s (NRZ) | | Bit Error Rate | <1 in 10-9 at maximum
Optical loss budget | | Operating Mode | Simplex or full-duplex | | Wavelength | 1310/1550 nm | | Number of Fibers | 1 | | Mode | Multi-mode (62.5/125 µm) | | LED Indicators | Video sync presence for each video channel
Received data - transmitted data
Optical carrier detect | | Optical Emitter | Laser diode | | Optical Connector | ST | | Power Connector | Terminal block | | Video Connector | BNC (Gold plated center-pin) | | Data Connector | 5 x RJ45 (included) | | Current Protection | Automatic resettable solid-state
Current limiters | | Circuit Board | Meets IPC standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 0 to 95% (non-condensing) | | Power | 8 to 15 VDC at 4 W | | Mounting Options | Surface- and rack-mountable | | Number of Rack Slots | 2 | | Dimensions (L x W x H) | 6.1 x 5.3 x 2.2" / 15.5 x 13.5 x 5.6 cm | | Weight | 1 lb / 0.45 kg |
