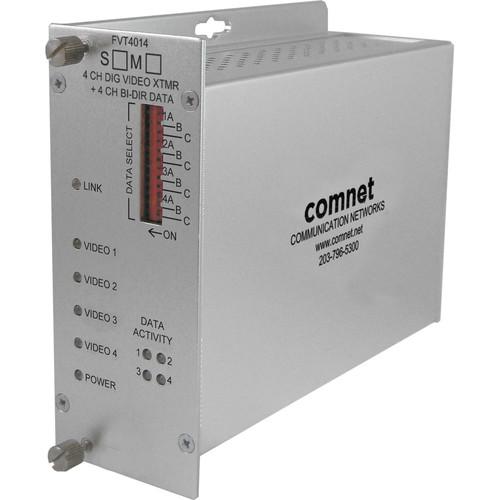

Product description The FVT4014M1 4-Channel Digital Video Transmitter and Data Transceiver from COMNET utilizes 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. This environmentally hardened unit provides transmission of four independent video channels and four bidirectional data channels over one optical cable. It is suitable for use in roadside or out-of-plant installations. The Video Transmitter/Data Transceiver is completely transparent to and universally compatible with NTSC, PAL, or SECAM CCTV camera systems. Data channels can be set independently for RS-232, RS-422, and 2- or 4-wire RS-485 with tri-state support. Plug-and-play design ensures ease of installation. Bicolor (red/green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the ComNet ComFit housing, this unit can either be wall or rack mounted, or may be DIN-rail mounted by the addition of a ComNet model DINBKT1 adapter plate (not included). - Transmits four real-time color video signals and four bidirectional data signals on one optical fiber
- Supports RS-232, RS-422, and 2- or 4-wire RS-485 with tri-state data interfaces
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures high reliability in unconditioned out-of-plant environments
- Hot-swappable rack modules
In the Box COMNET FVT4014M1 4-Channel Digital Video Transmitter and Data Transceiver 9 VDC Plugin Power Supply 5 x RJ45 Breakout Wiring Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET FVT4014M1 4-Channel Digital Video Transmitter and Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT4014M1 Specs | | | Video Input | 1 V p-p (75 Ohms) | | Overload | Up to 1.5 V p-p | | Channels | 4 | | Bandwidth | 10 Hz to 6.5 MHz per channel | | Differential Gain | <2% | | Differential Phase | <0.7° | | Tilt | <1% | | S/N Ratio | 67 dB typical | | Wiring Distance | 300' / 100 m camera to fiber optic module to maintain 6 MHz bandwidth | | | | Channels | 4 | | Interface | RS-232, RS-422, and RS-485 (2/4 W) | | Format | NRZ, NRZI, Manchester, Bi-phase, and Sensornet | | Data Rate | 0 to 250 kb/s (NRZ) | | Bit Error Rate | <1 in 10-9 at maximum optical loss budget | | Mode | Simplex or full-duplex | | | | Mode | Multimode | | Number of Fibers | 1 | | Diameter | 62.5/125 μm | | Optical Emitter | Laser | | Optical Power Budget | 16 dB | | Wavelength | 1310/1550 nm | | Maximum Distance | 1.2 miles / 2 km | | Number of Rack Slots | 2 | | | | Optical | ST | | Power | Terminal block | | Video | BNC (gold plated center-pin) | | Data | 5 x RJ45 | | | | LEDs | 1 x video sync presence for each video channel
1 x transmitted data
1 x optical carrier detect | | Power | 8 to 15 VDC at 4 W | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | | | MTBF | 100,000 hours | | Operating Temperature | -40 to 167°F / -40 to 75°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 0 to 95% (non-condensing) | | | | Dimensions | 6.1 x 5.3 x 2.2" / 15.5 x 13.5 x 5.6 cm | | Weight | 1 lb / 0.45 kg |
