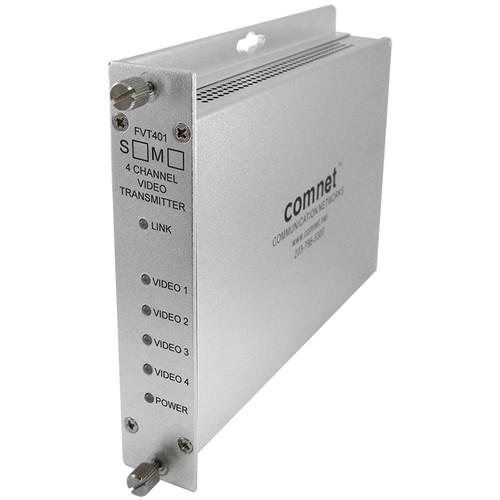

Product description The COMNET FVT401M1 4-Channel 10-Bit Digitally Encoded Short-Haul Video Transmitter simultaneously transmits 4 channels of video over a single multimode optical fiber utilizing 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. This environmentally hardened unit is suitable for use in unconditioned roadside or out-of-plant installations. It is completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems.
The plug-and-play design of the transmitter ensures ease of installation and eliminates the requirement for electrical or optical adjustments. Bi-color (red/green) LED indicators are provided for rapidly ascertaining equipment operating status. The transmitter is interchangeable between standalone or card mount configurations. Note: A receiver (FVR401M1, available separately) is required at the receiving end. - 10-bit digital video transmission of 4 real-time color video signals on one optical fiber
- Exceeds all requirements for EIA RS-250C short-haul transmission with good video performance
- Low video distortion with zero performance variation v/s optical path loss
- Suitable for networks requiring multiple physical layers where video degradation may be a problem
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Wide optical dynamic range eliminates the need for optical attenuators
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Robust design ensures high reliability in unconditioned out-of-plant environments
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Automatic resettable solid-state current limiters
- Suitable for high-performance CCTV (fixed video) applications
UPC: 845770003093 In the Box COMNET FVT401M1 4-Channel 10-Bit Digitally Encoded Short-Haul Video Transmitter (Multimode, 1310nm) 9VDC Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET FVT401M1 4-Channel 10-Bit Digitally Encoded Short-Haul Video Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT401M1 Specs | Input | 1 Vpp (75 Ω) | | Overload | >1.5 Vpp | | Channel | Input/Output: 4 | | Bandwidth | Minimum: 10 Hz to 6.5 MHz | | Differential Gain | <2% | | Differential Phase | <0.7˚ | | Tilt | <1% | | Signal to Noise Ratio | 67 dB typical | | Coaxial | Maximum COAX Distance: 300' (100 m) camera to fiber optic module to maintain 6 MHz bandwidth | | Wavelength | 1310 nm, multimode | | Optical Power Budget | 16 dB | | Number of Fibers | 1 This product requires a fiber installation with a minimum 30 dB connector return loss. The use of Super Polish Connectors is recommended. | | Fiber Type | 62.5 / 125 µm | | Maximum Distance | 1.2 mi (2.0 km) (distance may be limited by optical dispersion) A receiver (FVR401M1, available separately) is required for transmission of the video signal. | | LED Indicators | Video sync presence for each video channel
Power | | Connectors | Optical: ST
Power: Terminal block
Video: BNC (gold-plated center pin) | | Power Supply | 9 VDC plug-in power supply, 90 to 264 VAC, 50/60 Hz, included | | Power | Surface Mount: 8 to 15 VDC @ 3 W | | Rack Mount | Rack Mount: From rack | | Number of Rack Slots | 1 | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC Standard | | MTBF | >100,000 hours | | Operating Temperature | -40 to 167˚F (-40 to 75˚C) | | Storage Temperature | -40 to 185˚F (-40 to 85˚C) | | Relative Humidity | 0 to 95% (non-condensing) | | Dimensions (L x W x H) | 6.1 x 5.3 x 1.1" (15.5 x 13.5 x 2.8 cm) | | Weight | less than 2.0 lb (0.9 kg) |
