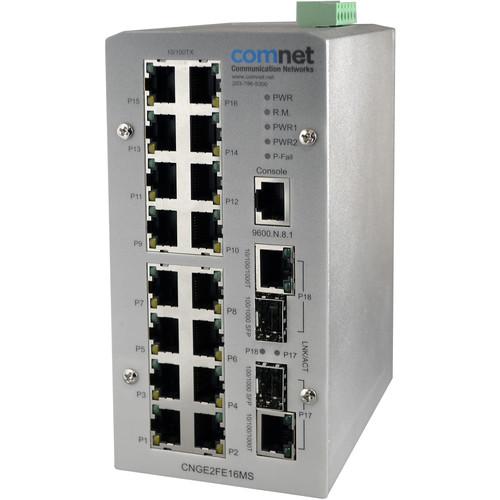

User Manual for COMNET Managed Ethernet Switch with 10 100TX & Configurable 10 100 1000TX 100 1000FX Ports Click to enlarge the picture
Contents of the user manual for the COMNET Managed Ethernet Switch with 10
- Product category: Network Switches, Bridges & Hubs COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Network Switches, Bridges & Hubs
|
User manual for the COMNET Managed Ethernet Switch with 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The Managed Ethernet Switch with 10/100TX & Configurable 10/100/1000TX / 100/1000FX Ports from ComNet provides transmission of sixteen 10/100 BASE-TX and two 10/100/1000TX or 100/1000FX combo ports of gigabit Ethernet data. This environmentally hardened unit is designed for direct deployment in difficult out-of-plant or roadside operating environments, and is available for use with either conventional CAT5e copper or optical transmission media. Diverse media selection allows for easy implementation of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and mesh network system architectures.The 2 ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, determined by optional SFP modules. This network-managed layer 2 switch is optically (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. - General
-
- 16 x 10/100BASE-T(X) ports
- 2 x 10/100/1000TX or 100/1000FX gigabit combo ports
- Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Compliant with EN60950-1 and UL Class 1, Division 2, Groups A, B, C, and D for hazardous locations
- Extended ambient operating temperature range of -40 to 167˚F (functional to 185˚F)
- 10/100 BASE-TX and 100/1000 BASE-FX compatible
- Electrical ports support 10/100/1000 Mb/s Ethernet IEEE802.3 protocol
- Flexible optics configuration via SFP plug-in modules
- TFTP firmware update and system configure restore and backup
- Rigid aluminum housing design provides for DIN-Rail or wall mounting
- Redundant power supply compatibility reduces possibility of single-point-of-failure for reliability
- Fully configurable through web-based or SNMP network management
- IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2
- Port-based VLAN (IEEE 802.1Q)
- Supports IEEE802.1ab LLDP
- Supports Electrostatic Discharge Test (ESD, IEC 61000-4-2)
- Provides EFT protection of 3 KV for power line
- Rapid spanning tree protocol (IEEE 802.1W)
- Automatic MDI/MDI-X crossover
- DIN rail and wall mount design
- LED indicators provided for confirming equipment operating status
- Power supply Included
- Spanning Tree
-
- Supports IEEE802.1d Spanning Tree
- Supports IEEE802.1w Rapid Spanning Tree
- X-Ring
-
- X-Ring, dual homing, couple ring topology
- Provides redundant backup feature and a recovery time of below 10ms
- Bandwidth Control
-
- Ingress packet filter and egress rate limit
- Broadcast/multicast packet filter control
- System Log Server/Client
-
- SMTP e-mail alert
- Relay alarm output system events
- SNMP Trap
-
- Device cold start
- Power status
- Authentication failure
- X-Ring topology changed
- Port link up/ link down
- System Interface/Performance
-
- RJ45 port support Auto MDI/MDI-X function
- SFP supports 100/1000 dual mode
- Store-and-forward switching architecture
- Back-plane (switching fabric): 7.2 Gbps
- 1 Megabits packet buffer
- 8K MAC address table
- Wide operating temperature range (-40 to 167˚F)
- Power Supply
-
- Wide-range redundant power design
- Power polarity reverse protect
- Overload current protection
- VLAN
-
- 802.1Q Tag VLAN and Double Tag VLAN (Q-in-Q)
- Static VLAN groups up to 256, VLAN ID from 1 to 4094
- GVRP up to 256 Groups
- Port Trunk with LACP
-
- Supports 4 trunk groups and 4 trunk members maximum in each group
- Quality of Service
-
- The quality of service determined by port, Tag and IPv4 Type of service, IPv4 Different Service
- Class of Service
-
- Supports IEEE802.1p class of service, per port provides 4 priority queues
- Port Mirror
-
- TX packet only
- RX packet only
- Both TX and RX packet
- SSH/SSL (128-bit encryption)
-
- Supports Secure Sockets Layer to protect the data access from WEB browser, compliant with SSL V2, V3 and TLS V1.0
- Supports Security Shell for Telnet and compliant with SSH-V2 Perform with RFC 4252, RFC 4253 and RFC 4254
- Port Security with MAC address entries/filter
- IP address security management to prevent unauthorized intruder
- IEEE802.1X/RADIUS login security
- IGMP
-
- Query mode for multimedia application
- Support multicast filter
- Software
-
- Back-plane (Switching Fabric) speed: 7.2 Gbps
- SNMP v1, v2c, v3/ Web/Telnet/CLI/NS-View Management
- IEEE802.1Q Tag VLAN (256 entries)/ VLAN ID (UP to 4K, can be assigned from 1 to 4096) GVRP (256 Groups)
- Supports LLDP to allow switch to advise its identification and capability on the LAN, and also support LLDP-MED (Media Endpoint Discovery) which is an enhancement of LLDP
- Supports dual stack for IPv4 and IPv6 Support Plug and Play function IPv6 Logo Committee certified Performs with RFCs including RFC 2460 (IPv6 specification), RFC 4861 (Neighbor Discovery for IPv6), RFC 4862 (IPv6 Stateless Address Auto-configuration), and RFC 1981 (Path MTU Discovery for IPv6)
- Supports IEEE802.1d Spanning Tree & IEEE802.1w Rapid Spanning Tree
- Supports X-Ring II, Dual Homing, Couple Ring and Multiple Ring Topology
- Provides redundant backup feature and the recovery time below 10ms
- Multiple rings can be configured as following topology (up to 250 switches)
- Supports s256 entries of MAC address for static MAC and another 256 for MAC filter
- Supports 3 mirroring types: RX, TX and Both packet
- Supports IGMP snooping v1, v2 and MLD snooping v1
- Supports 256 multicast groups
- Supports IGMP and MLD query
- Supports 256 static multicast groups
- Supports 10 IP addresses that have permission to access the switch management and to prevent unauthorized intruder
- Supports IEEE802.1X Authentication/RADIUS
- Supports ingress packet filter and egress packet limit
- Egress rate control supports all of packet type
- Ingress filter packet type combination rules are broadcast/multicast/flooded
- Unicast packet, broadcast/multicast packet, broadcast packet only and all types of packet
- The packet filter rate can be set an accurate value through the pull-down menu for the ingress packet filter and the egress packet limit
- Supports flow control for full-duplex and back pressure from half-duplex
- Supports system log record and remote system log server
- Supports SMTP Server and 6 e-mail accounts for receiving event alert
- Provides one relay output for port breakdown, power fail
- Alarm Relay current carry capacity of 1A @ 24 VDC
- Up to 3 SNMP trap stations including device cold start, authorization failure, port link up/link down, and MAC violation
- Provides DHCP Client/ DHCP Server /Port IP Binding
- Provides DNS client feature and supports Primary and Secondary DNS server
- Supports SNTP to synchronize system clock in Internet, and setting for synchronization interval
- Supports TFTP firmware update, TFTP backup and restore
- Each port allows an alphabetic string of 128 bytes assigned as its own unique name via the SNMP or CLI interface
- Applications
-
- Traffic Signalization & Surveillance (ITS)/Incident Detection Networks
- Industrial and factory automation
- Integrated IP-video and data transmission networks
- Industrial security access control systems
In the Box COMNET Managed Ethernet Switch with 10/100TX & Configurable 10/100/1000TX / 100/1000FX Ports Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Managed Ethernet Switch with 10 100TX & Configurable 10 100 1000TX 100 1000FX Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE2FE16MS Specs | Ethernet | Transfer Rate: 14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber
Ethernet Port Packet Buffer: 1 megabit
Mac Address: 8K MAC address table
Flash ROM: 4 megabytes
DRAM: 32 MB | | Connectors | 10/100TX: 16 × RJ45
10/100/1000TX/ SFP Combo: 2 × RJ45 + 2 × 100/1000 SFP sockets
RS232: RJ45 type | | Network Cables | 10Base-T: 2-pair UTP/STP CAT3, 4, 5 cable. EIA/TIA-568 100 ohm (100 m)
100Base-TX: 2-pair UTP/STP CAT5/5E cable. EIA/TIA-568 100 ohm (100 m)
1000Base-TX: 2-pair UTP/STP CAT5e or 6 cable. EIA/TIA-568 100 ohm (100 m) | | Optical Fiber | Multimode: 50/125 µm to 62.5/125 µm
Singlemode: 9/125 µm | | Protocol | CSMA/CD | | LED | 16 x 10/100TX: Link/Activity (Green)
Full Duplex/Collision (Yellow)
Giga Copper: Link/Activity (Green)
Speed: 1000 Mb/s (Green)
SFP: Link/Activity (Green)
Power (Green), Power 1 (Green),
Power 2 (Green), Fault (Red), Master (Green) | | Power | Reserve Polarity Protection: Present
Overload Current Protection: Present
Power Supply: 12 to 48 VDC, Redundant power with polarity reverse protect function and removable terminal block
Power Consumption: 10.6 W | | Installation | DIN Rail (35 mm track) or Wall Mount | | EMI Certifications | FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN55022, CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-6-2, CE EN61000-6-4 IETF RFC | | Environmental | MTBF: >220,000 hours
Operating Humidity: 5% to 95% (Non-condensing)
Operating Temperature: -40 to 167˚F / -40 to 75˚C, functional to 185˚F / 85˚C
Storage Temperature: -40 to 185˚F / -40 to 85˚C | | Compliance | RFC768-UDP, RFC783-TFTP, RFC791-IP RFC792-ICMP, RFC793-TCP, RFC827-ARP, RFC854-Telnet, RFC894-IP over Ethernet, RFC1112-IGMPv1, RFC1519-CIDR, RFC1541-DHCP (client), RFC2030-SNTP, RFC2068-HTTP, RFC2236-IGMP v2, RFC2475-Differentiated Services, RFC2865-Radius, RFC3414-SNMPv3-USM, RFC3415-SNMPv3-VACM IETF SNMP MIBSRFC1493-BRIDGE-MIB, RFC1907-SNMPv2-MIB, RFC2012-TCP-MIB, RFC2013-UDP-MIB, RFC2578-SNMPv2- SMI, RFC2579-SNMPv2-TC, RFC2819-RMON-MIB, RFC2863-IF-MIB, draft-ietf-bridgerstppmib-03-BRIDGE-MIB, draft-ietf-bridgebridgemib-smiv2-03-RSTP-MIB, IANAifType-MIB | | Safety | UL, cUL, CE/EN60950-1, UL 508 Class 1, Division 2, Groups A, B, C, & D for Hazardous Locations | | Stability Testing | IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration) | | IP Rating | IP30 | | Dimensions | 2.84 × 4.13 × 5.98" / 7.20 × 10.5 × 15.2 cm | | Weight | Not specified by manufacturer |
