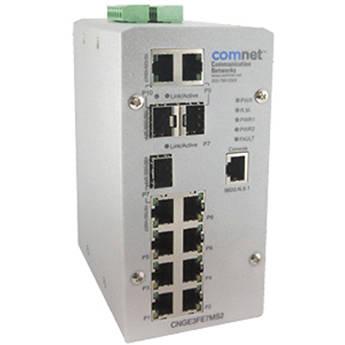

User Manual for COMNET Managed Ethernet Switch with Seven 10 100TX & Three 10 100 1000TX 100 1000FX Ports Click to enlarge the picture
Contents of the user manual for the COMNET Managed Ethernet Switch with Seven
- Product category: Network Switches, Bridges & Hubs COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Network Switches, Bridges & Hubs
|
User manual for the COMNET Managed Ethernet Switch with Seven contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet™ CNGE3FE7MS2 Managed Ethernet Switch provides robust transmission of (7) 10/100 BASE-TX and (3) 10/100/1000TX or 100/1000FX combo ports, of gigabit Ethernet data. Unlike most Ethernet switches, these environmentally hardened units are designed for direct deployment in difficult out-of-plant or roadside operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. Diverse media selection allows for easy implementation of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and mesh network system architectures. The 7 electrical ports support the 10/100 Mbps Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of installation. 3 ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP modules. These network managed layer 2 switches are optically (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CNGE3FE7MS2 incorporates LED indicators for monitoring the operating status of the managed switch and network. These units are DIN-rail or wall mountable. UPC: 845770002201 In the Box COMNET Managed Ethernet Switch with Seven 10/100TX & Three 10/100/1000TX / 100/1000FX Ports CNGE3FE7MS2 Ethernet Switch 90-264VAC Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Managed Ethernet Switch with Seven 10 100TX & Three 10 100 1000TX 100 1000FX Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNGE3FE7MS2 Specs | | | Total Number of Network Ports | 7 | | Token Ring Port | No | | LRE Port | No | | Bypass | No | | Management Port | Yes | | Number of Network (RJ-45) Ports | 7 | | | | Media Type Supported | Optical Fiber
Twisted Pair | | Twisted Pair Cable Standard | Category 6 | | Ethernet Technology | Fast Ethernet
Gigabit Ethernet | | Network Technology | 10/100/1000Base-T
10/100Base-TX | | | | Number of Total Expansion Slots | 3 | | Expansion Slot Type | SFP | | Shared SFP Slot | Yes | | Number of SFP Slots | 3 | | | | Manageable | Yes | | Management | - Web-based Management
- SNMP v1, v2c, v3
- QoS
- VLAN
- Syslog
- MIB II
- DHCP
- CLI
- Telnet
| | | | Standard Memory | 32 MB | | Memory Technology | DRAM | | Flash Memory | 4 MB | | | | PoE (RJ-45) Port | No | | Input Voltage | 110 V AC
220 V AC | | Power Source | Power Supply | | Redundant Power Supply Supported | Yes | | | | Form Factor | Rail-mountable
Wall Mountable | | Height | 6" | | Width | 2.8" | | Depth | 4.1" | | Weight (Approximate) | 5 lb | | | | Certifications & Standards | IEEE Standards:- 802.3
- 802.3u
- 802.3ab
- 802.3z
- 802.3x
- 802.3ad
- 802.1d
- 802.1w
- 802.1p
- 802.1q
- 802.1x
- 802.1ab
Safety:- UL
- cUL
- CE/EN60950-1
- UL 508 Class 1, Division 2, Groups A, B, C and D for Hazardous Locations
Stability Testing:- IEC60068-2-32
- IEC60068-2-27
- IEC60068-2-6
EMI:- FCC Class A
- CE EN61000-4-2
- CE EN61000-4-3
- CE EN61000-4-4
- CE EN61000-4-5
- CE EN55022
- CE EN61000-4-6
- CE EN61000-4-8
- CE EN61000-6-2
- CE EN61000-6-4
| | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE |
