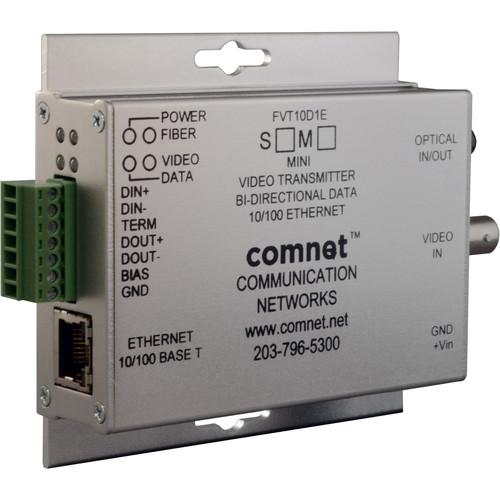

User Manual for COMNET Mini Multimode 10-Bit Digital Video Transmitter Bi-Directional Data Transceiver with 10 100Mbps Ethernet Port Click to enlarge the picture
Contents of the user manual for the COMNET Mini Multimode 10-Bit Digital Video
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Mini Multimode 10-Bit Digital Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT10D1EM small-size transmitter and data transceiver support the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally-encoded video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port. The modules are universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports ?up-the-coax" data transmission from most major manufacturers.
- Key Features
-
- One bi-directional data channel
- One 10/100 BASE-T/TX fast Ethernet port
- IEEE 802.3 compliant
- Certified to the requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Automatic resettable fuses on all power lines
- Distances up to 30 miles (48 km)
- Status indicating LEDs provide rapid indication of critical operating parameters
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- ComFit standard form factor is interchangeable between stand-alone or rack mount use
- Compatible with NTSC, PAL, or SECAM Video Standards
- 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Mini Multimode 10-Bit Digital Video Transmitter Bi-Directional Data Transceiver with 10 100Mbps Ethernet Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT10D1EMM Specs | | | Device Type | Video/serial/network extender | | Form Factor | External | | Built-In Devices | LED panel | | | | Connectivity Technology | Wired | | Data Link Protocol | 10Mb LAN, 100Mb LAN | | Optical Wave Length | 1310 nm / 1550 nm | | Max Transfer Distance | 1.9 miles | | Status Indicators | Link/activity, video | | Features | Auto-uplink (auto MDI/MDI-X) | | Compliant Standards | IEEE 802.3 | | | | Interfaces | 1 x RS-232/422/485
1 x network - ST multi-mode
1 x Ethernet 10/100 - RJ-45
1 x video - BNC | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus | | | | Width | 3.7 in | | Depth | 4.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
