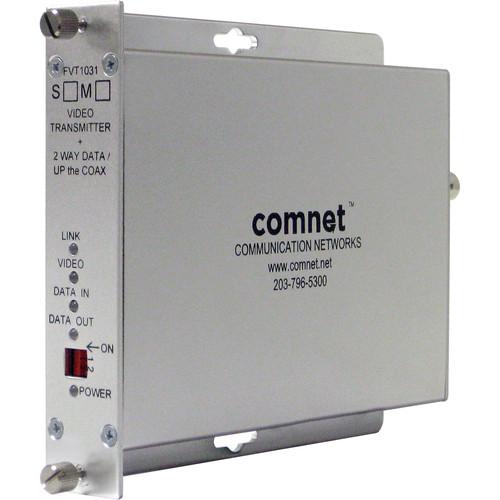

User Manual for COMNET Multimode 10-Bit Digital Video Transmitter Bi-Directional Data Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET Multimode 10-Bit Digital Video Transmitter
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Multimode 10-Bit Digital Video Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT1031M1 and FVR1031M1 video transmitter/ receiver and data transceiver support simultaneous transmission of short-haul quality 10-bit digital video, bi-directional data and up-the-coax data over one multimode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS-232, RS-422 and 2 or 4-wire RS-485 data interfaces, and most major data protocols as well as up-the-coax data. The FVT/ FVR1031 allows the user to choose bi-directional data or up-the-coax data through a switch on the unit. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. -
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
- Automatic resettable fuses on all power lines
- 10-bit digitally encoded video transmission
- Compatible with PAL, NTSC, SECAM
- Distances up to 2 miles (3 km)
- Wavelength: 1310/1550 nm
- Bandwidth: 5 Hz - 10 MHz
- Hot-swappable modules
- Number of Fibers: 1
- LED Indicators
In the Box COMNET Multimode 10-Bit Digital Video Transmitter/Bi-Directional Data Transceiver (Up to 2 mi) FVT1031M1 Digital Multimedia Receiver Power Supply Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Multimode 10-Bit Digital Video Transmitter Bi-Directional Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT1031M1 Specs | | | Form Factor | Rack-mountable | | Height | 1.1" | | Width | 5.3" | | Depth | 6.1" | | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | Country of Origin | United States |
