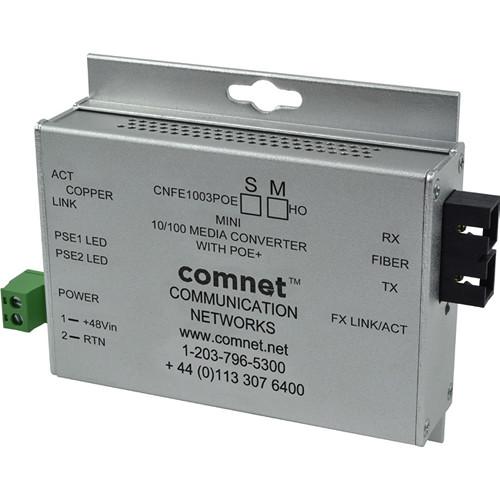

User Manual for COMNET Multimode 100 Mbps Media Converter with 48V POE Click to enlarge the picture
Contents of the user manual for the COMNET Multimode 100 Mbps Media Converter
- Product category: Ethernet Media Converters COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Ethernet Media Converters
|
User manual for the COMNET Multimode 100 Mbps Media Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet CNFE100(X)POE/M series 2-port media converters provide fullduplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. Plug-and-Play design ensures ease of operation, and no optical adjustments are ever required.
- Key Features
-
- Exceeds the requirements of the latest PoE+ standard (IEEE 802.3at)
- The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection
- The optical interface operates at 100 Mbps (100-FX)
- Power Sourcing Equipment (PSE) - provides 30 watts in two modes at 48 VDC, for high output demand applications of remote Ethernet equipment
- 60 watt higher output version available
- Automatic resettable solid state current limiters for modem protection
- A power supply providing 48 VDC at 1.25 A is provided with each converter
- Indicating LEDs provided for rapidly ascertaining the operating status of the device
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Multimode 100 Mbps Media Converter with 48V POE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET CNFE1002APOEMHO/M Specs | | | Device Type | Fiber media converter | | Form Factor | External | | | | Connectivity Technology | Wired | | Cabling type | 10Base-T, 100Base-FX, 100Base-TX | | Data Link Protocol | 10Mb LAN, 100Mb LAN | | Data Transfer Rate | 100 Mbps | | Status Indicators | Power, PoE, link/activity | | Features | Auto-negotiation, half duplex mode, full duplex mode | | Compliant Standards | IEEE 802.3, IEEE 802.3at | | | | Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female
1 x Ethernet 100Base-FX - ST multi-mode female | | | | MTBF | 100,000 hours | | Compliant Standards | Plug and Play, RoHS, cULus | | | | Power Over Ethernet (PoE) | PoE+ | | Voltage Required | DC 48 V | | | | Width | 3.7 in | | Depth | 4.1 in | | Height | 1.1 in | | Weight | 17.64 oz | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
