User Manual for COMNET Multimode 1310 1550nm 4-Channel Digital Video Transmitter 4-Channel Bi-Directional Data Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET Multimode 1310 1550nm 4-Channel Digital
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Multimode 1310 1550nm 4-Channel Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|

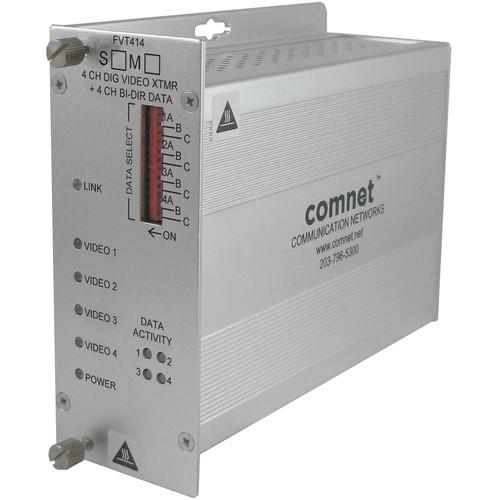

Product description Provided by third party: The ComNet FVT414 video transmitter/data transceiver and video receiver/data transceiver series utilize digital encoding and decoding for high-quality video transmission. These environmentally hardened units provide transmission of four independent video channels and four bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485 with tristate support. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rackmounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adapter plate.
- Key Features
-
- Digital video transmission: transmits 4 real-time color video signals and 4 bi-directional data signals on one optical fiber
- Supports RS232, RS422, and 2 or 4-wire RS485 withtri-state data interfaces
- Exceptionally low video distortion with zero performance variation vs. optical path loss
- Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Hot-swappable rack modules
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Multimode 1310 1550nm 4-Channel Digital Video Transmitter 4-Channel Bi-Directional Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT414M1 Specs | | | Device Type | Video/serial extender | | Form Factor | External - 2U | | Built-In Devices | LED panel | | | | Connectivity Technology | Wired | | Optical Wave Length | 1310 nm / 1550 nm | | Line Coding Format | NRZ, NRZI, Manchester | | Max Transfer Distance | 1.2 miles | | Status Indicators | Port status, power, link/activity | | Features | Full duplex capability | | | | Interfaces | 4 x RS-232/422/485
4 x video - BNC
1 x network - ST multi-mode | | | | Rack Mounting Kit | Optional | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 4 Watt | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 2.2 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
