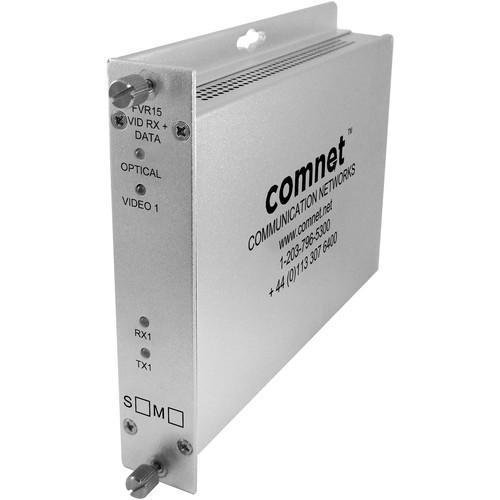

User Manual for COMNET Multimode Video Receiver with Return Data Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET Multimode Video Receiver with Return
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Multimode Video Receiver with Return contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVR15M2 series video and data transceiver supports the simultaneous transmission of video and return data over two multimode optical fibers. The module is universally compatible with all major CCTV camera manufacturers and supports RS232 and RS422 data interfaces and all major data protocols.
- Key Features
-
- AM Video Transmission
- Full color compatibility
- NTCIP compatible
- Supports RS232 or RS422 Data interfaces
- Transparent to data encoding/compatible with major CCTV camera manufacturers
- Distances up to 1.5 mi (2.5 km) without repeaters
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40
|
Upload User Manual
Have you got an user manual for the COMNET Multimode Video Receiver with Return Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR15M2 Specs | | | Device Type | Video/serial extender | | Form Factor | External - 1U | | | | Connectivity Technology | Wired | | Cabling type | Serial RS-232, serial RS-422 | | Optical Wave Length | 850 nm | | Line Coding Format | NRZ, Manchester | | Max Transfer Distance | 1.6 miles | | Status Indicators | Power, link/activity | | Features | Wall mountable, DIN rail mountable | | | | Interfaces | 1 x RS-232/422 - terminal block
1 x video (input) - BNC female
1 x network - ST multi-mode female x 2 | | | | Rack Mounting Kit | Optional | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus, NEMA TS-2 | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 4 Watt | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
