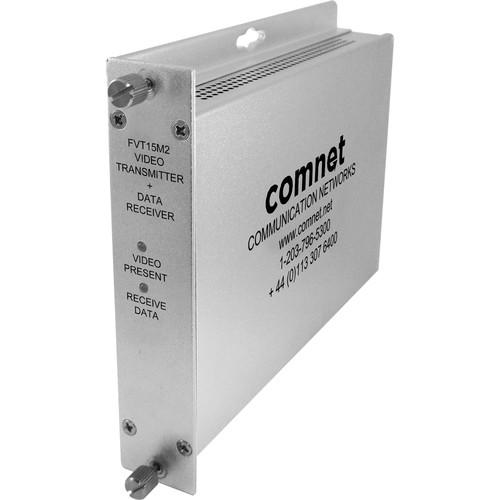

User Manual for COMNET Multimode Video Transmitter Return Data Receiver Click to enlarge the picture
Contents of the user manual for the COMNET Multimode Video Transmitter Return Data
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Multimode Video Transmitter Return Data contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT15M2 video transmitter/data receiver and the FVR15M2 video receiver/data transmitter support the simultaneous transmission of video and return data over two multimode optical fibers. These modules are universally compatible with all major CCTV camera manufacturers and supports RS232 and RS422 data interfaces and all major data protocols.
- Key Features
-
- Full color compatibility
- NTCIP compatible
- AM video transmission and reception
- Supports RS232 or RS422 data interfaces
- Transparent to data encoding/compatible with major CCTV camera manufacturers
- Automatic resettable fuses on all power lines
- Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
UPC: 845770000085 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Multimode Video Transmitter Return Data Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT15M2 Specs | | | Device Type | Video/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Optical Wave Length | 850 nm | | Line Coding Format | NRZ, Manchester | | Max Transfer Distance | 1.6 miles | | Status Indicators | Status | | | | Interfaces | 1 x RS-232/422 - terminal block
1 x video - BNC female
1 x network - ST multi-mode female x 2 | | | | Rack Mounting Kit | Optional | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus, NEMA TS-2 | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 4 Watt | | | | Width | 6.1 in | | Depth | 1.1 in | | Height | 5.3 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
