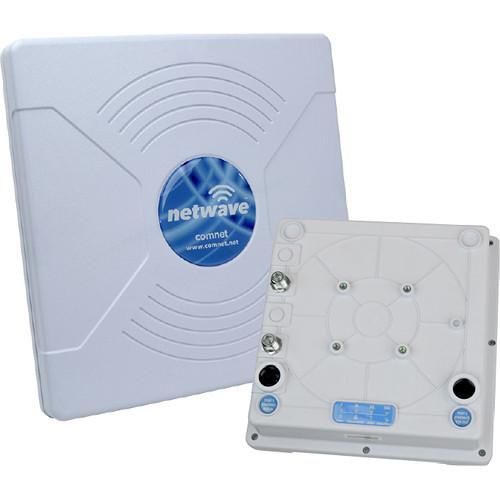

User Manual for COMNET NetWave Industrially Hardened Dual Radio Wireless Ethernet Device Click to enlarge the picture
Contents of the user manual for the COMNET NetWave Industrially Hardened Dual Radio
- Product category: Wireless Bridges COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Wireless Bridges
 |
User manual for the COMNET NetWave Industrially Hardened Dual Radio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The COMNET NetWave Industrially Hardened Dual Radio Wireless Ethernet Device is ETSI, DFS, and TPC certified for use in the European Union. It can be used with an external antenna and for redundant ring and drop & repeat topologies. Both radios can be configured through the embedded user interface as a Client or as an Access Point. In addition, the Ethernet device conforms to IP67 dust and water immersion protection standards.
Radio 2 supports 5 GHz operation and is connected to the 19 dBi internal antenna while Radio 1 is user selectable for 5 GHz or 2.4 GHz and connects to an external antenna. The device supports up to 145 Mb/s throughput using MIMO technology. It can be powered by an IEEE 802.3af/at PoE-compliant device or via the included power injection module with the second Ethernet port operational as an IEEE802.3at PoE power source. Performance and Design - IEEE802.3at PoE Compliant PD and PSE
- Over current protection and 3 layers of Ethernet surge suppression on the PD port
- Transmission range up to 2 km
- Environmentally hardened (-40 to 158°F)
- Meets class IP67 dust and water immersion protection standards
- DFS (Dynamic Frequency Selection)
- TPC (Transmit Power Control)
- Gigabit IEEE 802.3at 35W PoE+ Injector (included)
- Secure Transmission: WPA2 - AES or TKIP encryption
- Antenna alignment feature eases installation and setup
- LED array displays unit operational status along with received signal strength
Software Features - Spanning Tree protocol support
- 802.1x port-based network access control
- User-configurable Watchdog and Auto-Reboot mechanism
- Multi-level configuration and monitoring Login Accounts
- User configurable Long Range parameters
Applications - Installations that require redundant ring or linear drop and repeat topologies
- Ideal for PoE Camera connectivity
- Installations that require connecting to more than one Ethernet device
- Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
- Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and VDS (Video Detection Systems)
- ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
- Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance
In the Box COMNET NetWave Industrially Hardened Dual Radio Wireless Ethernet Device (EU) Power Kit with IEEE 802.3at 35W PoE Injector Line Cord Pole Mounting Hardware Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Industrially Hardened Dual Radio Wireless Ethernet Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NW8E Specs | Wireless Radio Specifications | 2.4 GHz
EIRP: +20 dBm
RF Output: +23 dBm rated transmitter
Operational Frequency: 2412 to 2472 MHz
Bandwidth: 10, 20, 20/40 MHz
5 GHz
EIRP: +30 dBm
RF Output: +26 dBm rated transmitter
Operational Frequency: 5180 to 5825 MHz
Bandwidth: 10, 20, 20/40 MHz | | Internal antennas | Connected to Radio 2
Antenna: Internal 19 dBi dual polarized directional
Gain: 19 dBi
Azimuth/Elevation: 17° horizontal/vertical | | Connectors | Gigabit Ethernet: 2 x RJ-45, sealed cable gland
External Antenna (Radio 1): 2 x N-Type 50 ohms | | Software | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V2c | | Power | Operating Power: 48 to 57 VDC @ 100 mA
Power Consumption: 4.8 W maximum
PD Power: IEEE802.3af/at PD compliant
PSE Power: IEEE802.3at PSE compliant | | Environmental | MTBF: >100,000 hours
Operating Temperature: -40 to 158°F (-40 to 70°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Relative Humidity: 5 to 95%, non-condensing | | Indicator LEDs | Power On
Ethernet Link
Signal Strength
LAN port | | Dimensions (L x W x H) | 10 x 10 x 3.4" (25.7 x 25.7 x 8.6 cm) | | Weight | 1 lb (0.45 kg) |
