User Manual for COMNET NetWave Industrially Hardened Point-to-Point Wireless Ethernet Kit Click to enlarge the picture
Contents of the user manual for the COMNET NetWave Industrially Hardened Point-to-Point Wireless
- Product category: Wireless Bridges COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Wireless Bridges
|
User manual for the COMNET NetWave Industrially Hardened Point-to-Point Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|

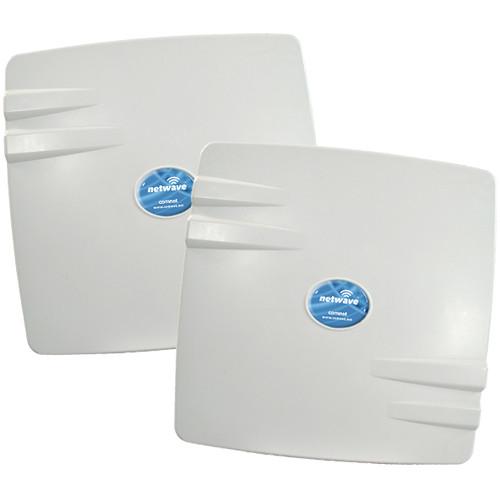

Product description The NetWave Industrially Hardened Point-to-Point Wireless Ethernet Kit from COMNET allows Ethernet data to be transmitted between a client remote location and the access point or head end. The NWK1 supports up to 95 Mbps throughput, thanks to MIMO technology. An easy-to-read LED array displays unit operational status along with received signal strength ensuring optimal installation and operation. The units can be powered by an IEEE 802.3af PoE compliant device or through the supplied power injection module. Features - Pre-configured access point and client units for quick setup
- Secure transmission using WPA2; AES or TKIP encryption
- Maximum operating distance of up to 2 miles
- Can be powered using the included power injection module or by an IEEE802.3af PoE compliant device
- LED array displays unit's operational status along with received signal strength
- Environmentally hardened (-40 to 167°F)
- Dust and water resistant IP67 rated housing
- ComNet Antenna alignment feature eases installation and setup
- Features RF spectrum survey and antenna alignment tools
Applications - Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and Video Detection Systems (VDS)
- ITS roadside and city center CCTV surveillance
- Surveillance of high-value or mission-critical assets
- Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance
UPC: 845770010244 In the Box COMNET NetWave Industrially Hardened Point-to-Point Wireless Ethernet Kit Radio Transmitter Radio Receiver 2 x Power Kit with Power Supply and Passive Power Injector 2 x Mounting Hardware Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Industrially Hardened Point-to-Point Wireless Ethernet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NWK1 Specs | Antenna | Internal 19 dBi dual polarized directional | | Gain | 19 dBi | | Azimuth | 17° horizontal/vertical | | Elevation | 17° horizontal/vertical | | Connectors | 10/100 Ethernet: 2 × RJ-45, sealed cable gland | | Indicator LEDs | 1 x Power On
1 x Ethernet link
1 x Signal strength | | Software & Features | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V3
Spanning tree protocol support
Telnet server
Syslog
802.1x port-based network access control
NTP client
User-configurable watchdog and auto-reboot mechanism
Multi-level configuration and monitoring login accounts
User-configurable long range parameters | | Operating Voltage | 36 VDC @ 153 mA
48 to 57 VDC @ 115 mA | | Power Consumption | 5.5 W maximum | | PoE | IEEE 802.3af PD compliant | | MTBF | >100,000 hours | | EIRP | Up to 36 dBm for point-to-multipoint deployments, 45 dBm for point-to-point deployments with MAC-lock feature enabled | | RF Output | 26 dBm rated transmitter | | Operating Frequency | 5500 to 5825 GHz; region-dependent | | Bandwidth | 10, 20, and 40 MHz | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity | 5 to 95% | | Dimensions | 10.6 × 10.6 × 2.9" (26.9 × 26.9 × 7.4 cm) | | Weight | 2.0 lb (0.9 kg) including the mounting kit | | | | Package Weight | 9.8 lb | | Box Dimensions (LxWxH) | 15.0 x 11.5 x 8.1" |
