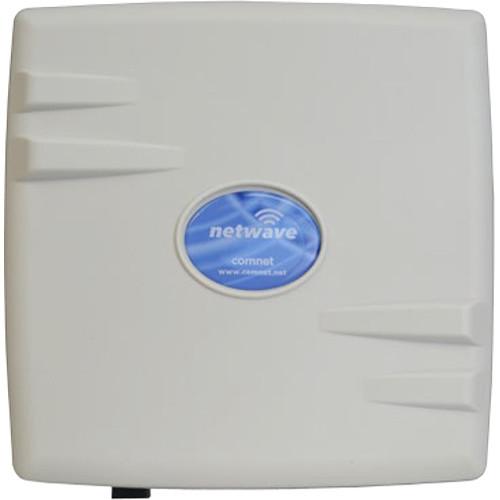

Product description The COMNET NetWave Mini Environmentally Hardened High Throughput Wireless Ethernet Kit includes a Client and an Access Point. This single-radio model is pre-configured for high throughput point-to-point applications and comes with an integrated 16 dBi, 30º beamwidth antenna. The units support up to 240 Mb/s throughput using MIMO technology and can be powered by an 802.3af PoE-compliant device or through an optional PoE injector. In addition, the kit is FCC-certified for use in North America. Performance and Design - High Throughput - Up to 180 Mb/s in one direction and 240 Mb/s total full duplex
- IEEE802.3af PoE compliant PD
- Transmission range up to 2 miles
- Environmentally hardened (-40 to 158°F)
- Meets class IP67 dust and water immersion protection standards
- Secure Transmission: WPA2 - AES or TKIP encryption
- Antenna alignment feature eases installation and setup

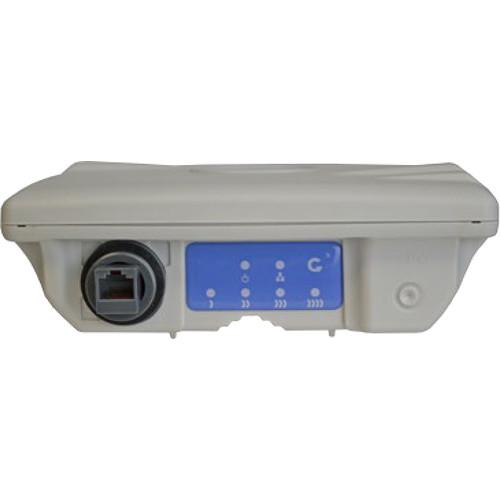

- LED array displays unit operational status along with received signal strength

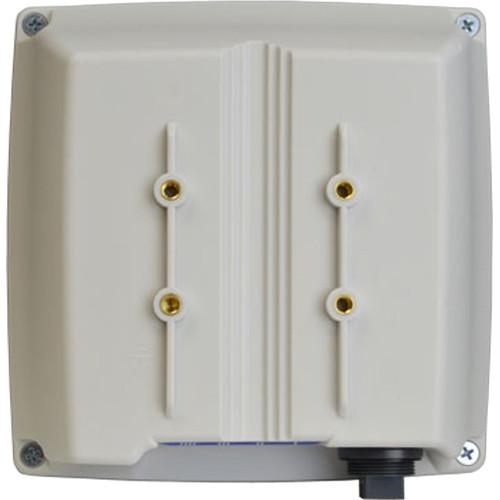

- Includes a pole mounting assembly
Software - Spanning Tree protocol support
- 802.1x port-based network access control
- User-configurable Watchdog and Auto-Reboot mechanism
- Multi-level configuration and monitoring Login Accounts
- User configurable Long Range parameters
Applications - High throughput Back Haul Link for installations that require connecting to more than one Ethernet device
- Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
- Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and VDS (Video Detection Systems)
- Multicast traffic-based video systems
- ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
- Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance
In the Box COMNET NetWave Mini Environmentally Hardened High Throughput Wireless Ethernet Kit (North America) Client Access Point Pole Mounting Hardware Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Mini Environmentally Hardened High Throughput Wireless Ethernet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NWK7/M Specs | Wireless Radio Specifications | 5 GHz
Up to +36 dBm for point-to-multipoint deployments, +46 dBm for point-to-point deployments with MAC-lock feature enabled
RF Output: 30 dBm rated transmitter
Operational Frequency: 5180 to 5825 MHz
Bandwidth: 20 and 40 MHz | | Internal antennas | Antenna: Internal 16 dBi dual polarized directional
Gain: 16 dBi
Azimuth/Elevation: 30° horizontal/vertical | | Connectors | RJ-45, sealed cable gland | | Software | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V3
Telnet Server: Syslog
Dynamic DNS: 802.1q VLAN support
Embedded Firewall: QoS support
Ability to Assign Static Routes: NTP Client | | Power | Operating Power: 42 to 57 VDC
Power Consumption: 8 W maximum
PD Power: IEEE802.3af PD compliant | | Environmental | MTBF: >100,000 hours
Operating Temperature: -40 to 158°F (-40 to 70°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Relative Humidity: 5 to 95%, non-condensing | | Indicator LEDs | Power On
Ethernet Link
Signal Strength | | Dimensions (L x W x H) | 7.4 x 7.4 x 2.2" (18.5 x 18.5 x 5.6 cm) | | Weight | 2 lb (0.9 kg) |
