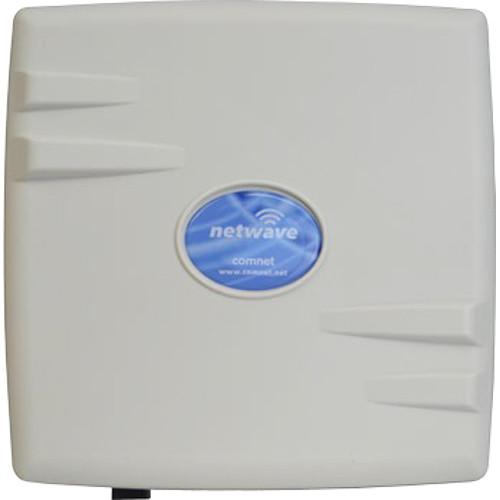

Product description The COMNET NetWave Mini Industrially Hardened Point-to-Multipoint Wireless Ethernet Link comes with a standard 16 dBi/30° beamwidth internal antenna and is FCC certified for use in North America. It can be configured through the embedded user interface as a client or as an access point. This point-to-multipoint model allows multiple Ethernet endpoints to be connected to a central access point. You can link up to 15 endpoints to a central access point. The Ethernet link supports up to 95 Mb/s throughput using MIMO technology and can be powered by an IEEE 802.3af PoE-compliant device or through the supplied power injection module. Performance and Design - Powered by the included power injection module or by an IEEE 802.3af PoE-compliant device
- Environmentally hardened (-40 to 167°F)
- Meets class IP67 dust and water immersion protection standards
- Secure Transmission: WPA2 - AES or TKIP encryption
- Antenna alignment feature eases installation and setup

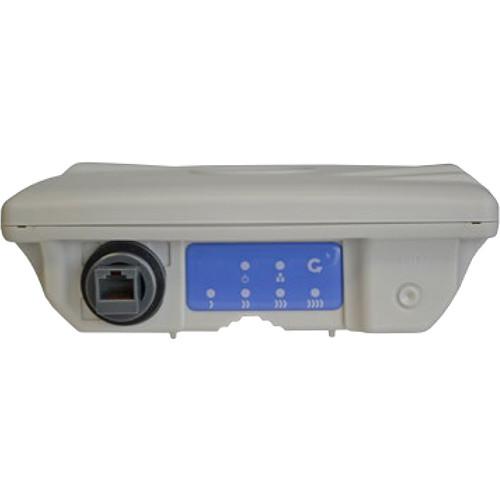

- LED array displays unit operational status along with received signal strength
Software Features - Spanning Tree Protocol support
- 802.1x port-based network access control
- User-configurable watchdog and auto-reboot mechanism
- User configurable long range parameters
Applications - Point-to-Multi-Point topologies whereby several clients connect to one access point
- Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and VDS (Video Detection Systems)
- ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
- Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance

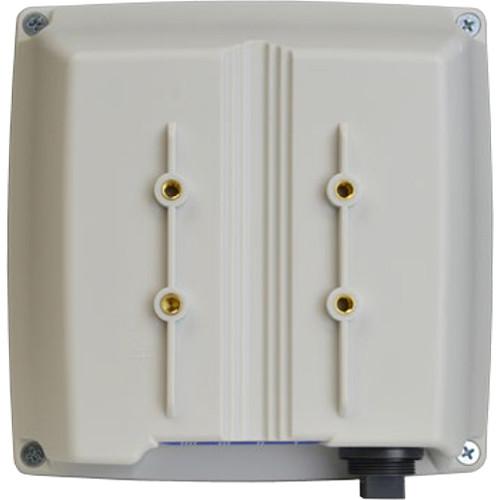

In the Box COMNET NetWave Mini Industrially Hardened Point-to-Multipoint Wireless Ethernet Link (North America) Power Kit with Power Supply and Passive Power Injector Pole Mounting Hardware Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Mini Industrially Hardened Point-to-Multipoint Wireless Ethernet Link in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NW1/M Specs | Wireless Radio Specifications | EIRP: Up to +36 dBm for point-to-multipoint deployments, +42 dBm for point-to-point deployments with MAC-lock feature enabled
RF Output: +26 dBm-rated transmitter
Operational Frequency: 5180 to 5825 MHz
Bandwidth: 20 and 40 MHz | | Internal Antennas | Standard Internal Antenna
Antenna: Internal 16 dBi dual polarized directional
Gain: 16 dBi
Azimuth: 30° horizontal/vertical
Elevation: 30° horizontal/vertical | | Connectors | 10/100 Ethernet: RJ45, sealed cable gland | | Software | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V3
Telnet Server: Syslog
Dynamic DNS: 802.1q VLAN support
Embedded Firewall: QoS support
Ability to Assign Static Routes: NTP Client | | Power | Operating Power: 42 to 57 VDC
Power Consumption: 5.5 W maximum
PD Power: IEEE 802.3af PD-compliant | | Environmental | MTBF: >100,000 hours
Operating Temperature: -40 to 167°F (-40 to 75°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Relative Humidity: 5 to 95%, non-condensing | | Indicator LEDs | Power On
Ethernet Link
Signal Strength | | Dimensions (L x W x H) | 7.4 x 7.4 x 2.2" (18.5 x 18.5 x 5.6 cm) | | Weight | 1 lb (0.45 kg) |
