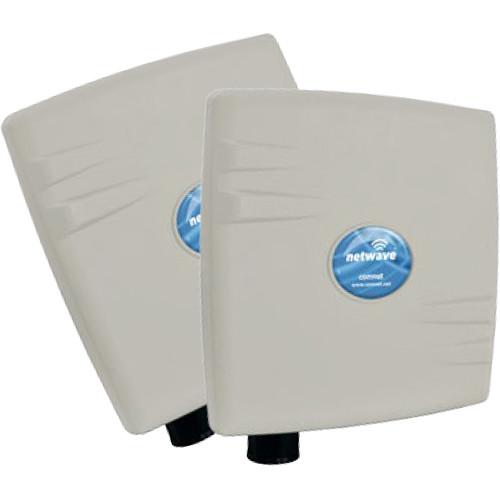

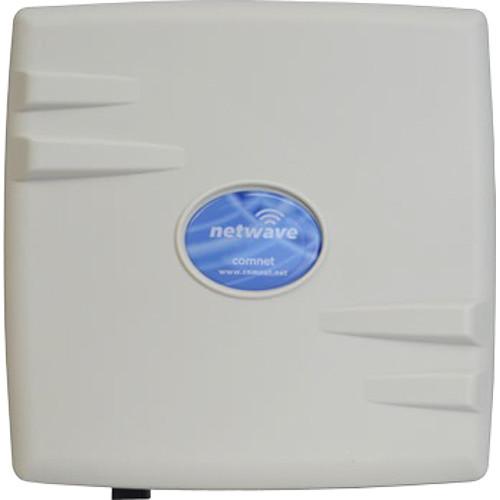

Product description The COMNET NetWave Mini Industrially Hardened Point-to-Point Wireless Ethernet Kit includes a Client and an Access Point and is FCC-certified for use in North America. It supports up to 95 Mb/s throughput using MIMO technology. The units can be powered by an IEEE 802.3af PoE-compliant device or through the supplied power injection module. Performance and Design - Powered by the included power injection module or by an IEEE802.3af PoE-compliant device
- Environmentally hardened (-40 to 167°F)
- Meets class IP67 dust and water immersion protection standards
- Secure Transmission: WPA2 - AES or TKIP encryption
- Antenna alignment feature eases installation and setup
- LED array displays unit operational status along with received signal strength
Software Features - Spanning Tree Protocol support
- 802.1x port-based network access control
- User-configurable Watchdog and Auto-Reboot mechanism
- Multi-level configuration and monitoring Login Accounts
- User configurable Long Range parameters
Applications - Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
- Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and VDS (Video Detection Systems)
- ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
- Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance

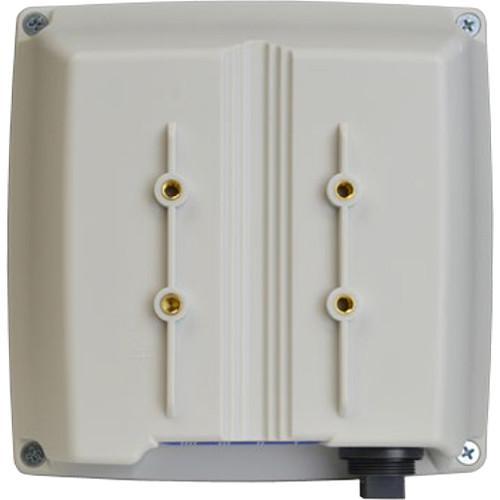

UPC: 845770013351 In the Box COMNET NetWave Mini Industrially Hardened Point-to-Point Wireless Ethernet Kit (North America) Client Access Point Power Kit with Power Supply and Passive Power Injector for Each Unit Pole Mounting Hardware Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Mini Industrially Hardened Point-to-Point Wireless Ethernet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NWK1/M Specs | Wireless Radio Specifications | EIRP: Up to +36 dBm for point-to-multipoint deployments, +42 dBm for point-to-point deployments with MAC-lock feature enabled
RF Output: +26 dBm rated transmitter
Operational Frequency: 5180 to 5825 MHz
Bandwidth: 20 and 40 MHz | | Internal antennas | Antenna: Internal 16 dBi dual polarized directional
Gain: 16 dBi
Azimuth/Elevation: 30° horizontal/vertical | | Connectors | 10/100 Ethernet: RJ-45, sealed cable gland | | Software | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V3
Telnet Server: Syslog
Dynamic DNS: 802.1q VLAN support
Embedded Firewall: QoS support
Ability to Assign Static Routes: NTP Client | | Power | Operating Power: 42 to 57 VDC
Power Consumption: 5.5 W maximum
PD Power: IEEE802.3af PD compliant | | Environmental | MTBF: >100,000 hours
Operating Temperature: -40 to 167°F (-40 to 75°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)

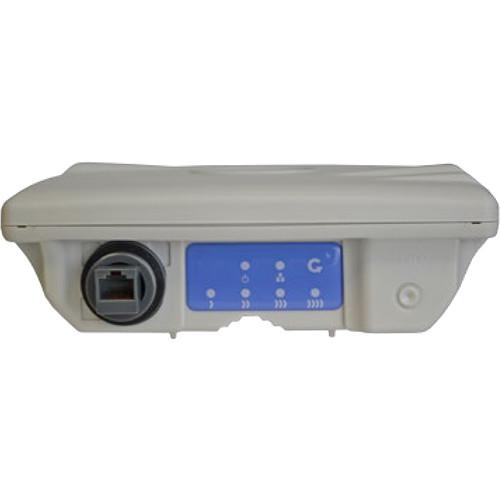

Relative Humidity: 5 to 95%, non-condensing | | Indicator LEDs | Power On
Ethernet Link
Signal Strength | | Dimensions (L x W x H) | 7.4 x 7.4 x 2.2" (18.5 x 18.5 x 5.6 cm) | | Weight | 1 lb (0.45 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 9.1 x 2.9" |
