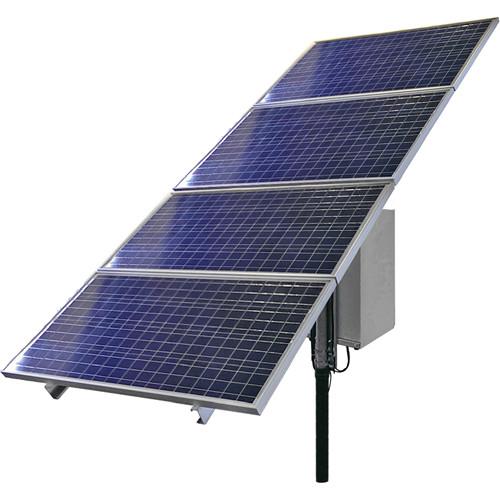

User Manual for COMNET NetWave Solar Power Ethernet Kit for Remote Locations with 3 Hour Peak Sunlight Click to enlarge the picture
Contents of the user manual for the COMNET NetWave Solar Power Ethernet Kit
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET NetWave Solar Power Ethernet Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The NetWave Solar Power Ethernet Kit from COMNET is designed for applications where a remote camera or wireless repeater is needed but power is not available. The kit includes a photovoltaic solar panel, valve-regulated lead-acid battery, outdoor enclosure, solar charge controller, PoE midspan injector, and mounting hardware. The steel outdoor enclosure has a gasket-hinged lid with two tamperproof locks for high security. The locks can be operated by a special key. The enclosure and solar panel can be mounted on a 2 to 4" pole or they can be wall-mounted with the included mounting hardware. The included 30A solar charge controller supports an LCD screen for local diagnostics and system health monitoring. The controller also supports Intelligent PWM charging mode and battery protection from overcharge and discharge. The battery provides good deep cycle and cold weather performance. - Designed with a heavy-duty anodized frame that is capable of withstanding high wind pressure, hail, and snow load.
- Good low-light performance
- High-efficiency multi-crystalline photovoltaic solar panel
- Weatherproof powder coated steel enclosure that meets NEMA 4X/IP65 weatherproofing standards
- Valve-regulated sealed lead acid AGM battery with good low temperature performance (minimum -40°F)
- 56 VDC Gigabit PoE injector
- Intelligent Controller features ampere hours monitoring of accumulated charge/discharge, automatic temperature compensation, battery low voltage disconnection, and more
- Suitable for remote surveillance cameras, wireless perimeter surveillance, temporary network surveillance deployments, and construction site network access
In the Box COMNET NetWave Solar Power Ethernet Kit for Remote Locations with 3 Hour Peak Sunlight (30W Continuous Power) 4 x Solar Panels Enclosure Pole Mounting Hardware Controller Midspan Injector Cables Limited 1-Year Warranty on Battery Limited 2-Year Warranty on Solar Panel and Hardware Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Solar Power Ethernet Kit for Remote Locations with 3 Hour Peak Sunlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NWKSP4 Specs | Controller Type | 12 to 24 V solar charge controller
Self Consumption: Up to 0.5 W | | PoE | Power Injector:
Input: 24 VDC
Output: 56 VDC at 0.625 A
Self Consumption: 1 W | | Built-In Solar Panel | Quantity: 4 x 120 W panels
Maximum Power (Pmax): 120 W
Voltage at Pmax (Vmp): 17.2 V
Current at Pmax (Imp): 6.98 A
Open-Circuit Voltage (Voc): 21.6 V
Short-Circuit Current (Isc): 7.72 A
Temperature Coefficient of Voc: -80 ±10 mV per °C
Temperature Coefficient of Isc: -0.065 ±0.015% per °C
Temperature Coefficient of Power: -0.5 ±0.05% per °C
NOCT: 47 ±2°C
Operating Temperature: -40 to 185°F / -40 to 85°C
Maximum System Voltage: 1000 VDC
Power Tolerance: ±5% | | Light | Type: Sunlight
Required: 3 hours peak
Battery Capacity: 110 Ah
Reserve Time: 40 hours | | MTBF | Up to 100,000 hours | | Operating Temperature | 86 to 140°F / 30 to 60°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 5 to 95% | | Enclosure Material | Powder coated steel | | Dimensions | Enclosure: 24 x 15 x 14" / 60.96 x 38.10 x 35.56 cm
Solar Panel: 48.98 x 26.57 x 1.38" / 124.4 x 67.5 x 3.5 cm | | Weight | Solar Pane: 24.25 lb / 11 kg
Total System with Batteries: 410 lb / 186 kg |
