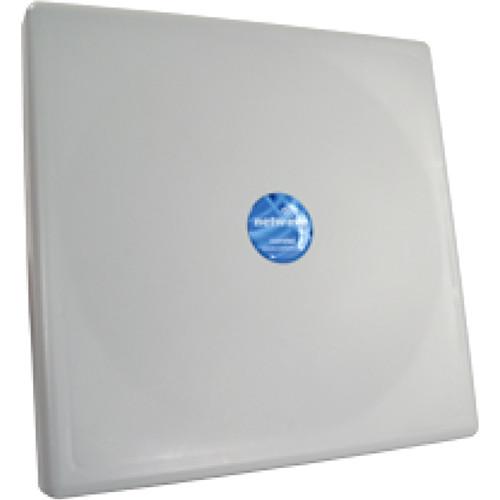

User Manual for COMNET NetWave Ultra-High Throughput Wireless Ethernet Transmitter Click to enlarge the picture
Contents of the user manual for the COMNET NetWave Ultra-High Throughput Wireless Ethernet
- Product category: Wireless Bridges COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Wireless Bridges
 |
User manual for the COMNET NetWave Ultra-High Throughput Wireless Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description The NetWave Ultra-High Throughput Ethernet Transmitter from ComNet can be configured through the embedded user interface as a client or as an access point. This impact-resistant, single-radio model is designed for high-throughput point-to-point or multi-point applications and comes with an integrated 19dBi, 17° beam-width antenna. The transmitter supports up to 500 MB/s throughput using 802.11ac MIMO technology. The units can be powered by an 802.3af/at PoE-compliant device or through a sold-separately PoE injector with the second Ethernet port serving as an IEEE802.3af power source. The transmitter is ETSI, DFS, and TPC certified for use in the European Union. -
- Up to 500 MB/s throughput
- Sturdy cast aluminum enclosure
- IEEE802.3at PoE compliant PD
- Over current protection and 3 layers of Ethernet surge suppression on the PD port
- 802.11ac compliant
- Distance range of up to 2 km
- ETSI Standards include DFS Dynamic Frequency Selection and TPC Transmit Power Control
- Environmentally hardened to operate at -40 to 158°F
- Meets class IP67 dust and water immersion protection standards
- Secure transmission with WPA2 – AES or TKIP encryption
- ComNet antenna alignment feature eases installation and setup
- RF spectrum survey tools
- Antenna alignment tools
- LED array displays unit operational status along with received signal strength
- Applications
-
- High throughput backhaul link for installations that require connecting to more than one Ethernet device
- Ideal for PoE camera connectivity
- Simple to deploy, the transmitter acts as an alternative to physical connections to Ethernet edge equipment
- Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and Video Detection Systems (VDS)
- Multicast traffic-based video systems
- ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance
In the Box COMNET NetWave Ultra-High Throughput Wireless Ethernet Transmitter (ETSI Certified) Pole Mounting Hardware Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NetWave Ultra-High Throughput Wireless Ethernet Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NW9E Specs | EIRP | +30 dBm | | RF Output | +30 dBm rated transmitter | | Frequency (Operating) | 5180 to 5825 MHz, region-dependent | | Bandwidth | 10, 20, 40, and 80 MHz | | Internal antennas | Internal 19 dBi dual polarized directional | | Gain | 19 dBi | | Azimuth | 17º Horizontal/Vertical | | Elevation | 17º Horizontal/Vertical | | Gigabit Ethernet | 2 x RJ-45, Sealed Cable Gland | | Software | Addressing: Static IP / DHCP Client / DHCP Server
SNMP: V3
Spanning Tree Protocol support
Telnet Server
Syslog
802.1x Port-Based Network Access Control
NTP Client
User-Configurable Watchdog and Auto-Reboot Mechanism
Multi-Level Configuration and Monitoring Login Accounts
User Configurable Long Range Parameters | | Operating Power | 48 to 57 VDC @ 170 mA | | Power Consumption | 8 W Maximum (with no PD load connected to port 2) | | Power | PD: IEEE802.3af/at PD compliant
PSE: IEEE802.3af PSE compliant | | PSE Power Available | IEEE802.3af PSE compliant | | MTBF | >100,000 hours | | Ingress Protection | IP67 | | Certification | ETSI | | Temperature | -40 to 158°F (-40 to 70°C)
-40 to 185°F (-40 to 85°C) | | Relative Humidity | 5 to 95%, non-condensing | | Indicator LEDs | Power On Ethernet Link Signal Strength | | Dimensions (L x W x H) | 10 x 10 x 1.4" (26 x 26 x 3.5 cm) |
