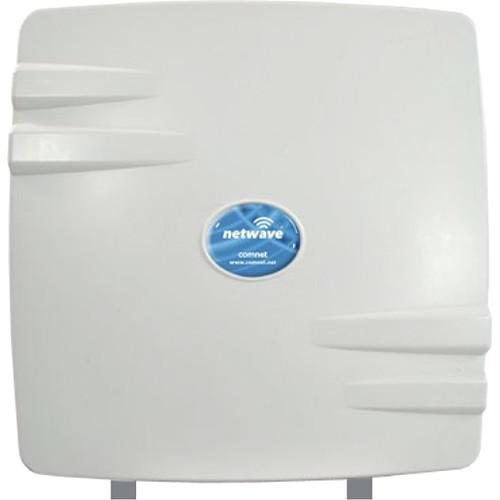

Product description The NWK7 Environmentally Hardened High Throughput Wireless Ethernet Kit from COMNET is designed for high throughput point-to-point or multi-point applications. Each unit comes with an integrated 19 dBi, 17° beamwidth antenna. The NWK7 supports up to 240 Mb/s throughput using MIMO technology. It can be powered by an 802.3af/at PoE compliant device or through a PoE injector (sold separately) with the second Ethernet port serving as an IEEE 802.3af power source. - Features
-
- High throughput of up to 180 Mb/s in simplex mode and up to 240 Mb/s in full duplex mode
- IEEE 802.3at PoE compliant power device
- Over-current protection and 3 layers of Ethernet surge suppression on the PD port
- 802.11a/n compliant
- Maximum operating distance of up to 2 miles
- Environmentally hardened
- IP67-rated dust and water protection
- Secure transmission; WPA2 – AES or TKIP encryption
- Ability to assign static routes
- User-configurable Watchdog and auto-reboot mechanism
- Multi-level configuration and monitoring login accounts
- User configurable long range parameters
- ComNet antenna alignment feature eases installation and setup
- Supports RF spectrum survey tools and antenna alignment tools

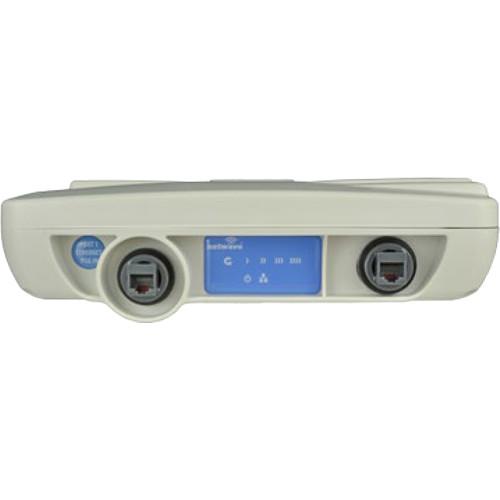

- LED array displays unit operational status along with received signal strength
- Applications
-
- High Throughput Back Haul Link for installations that require connecting to more than one Ethernet device
- PoE camera connectivity
- Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
- Integration of Ethernet where right-of-way issues mandate wireless communications
- ITS traffic signalization networks and Video Detection Systems (VDS)
- Multicast traffic-based video systems
- ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
- Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
- Electrical substation video and perimeter surveillance
In the Box COMNET NWK7 Environmentally Hardened High Throughput Wireless Ethernet Kit (FCC Certified) Limited Lifetime Warranty Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET NWK7 Environmentally Hardened High Throughput Wireless Ethernet Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET NWK7 Specs | EIRP | 4 to 26 dBm | | RF Output | 26 dBm rated transmitter | | Operation Frequency Range | 5180 to 5825 MHz (region-dependent) | | Bandwidth | 20 and 40 MHz | | Antenna Type | Internal 19 dBi dual polarized directional | | Gain | 19 dBi | | Azimuth | Horizontal/Vertical: 17° | | Elevation | Horizontal/Vertical: 17° | | Gigabit Ethernet | 2 × RJ-45, sealed cable gland | | Addressing | Static IP / DHCP Client / DHCP server | | SNMP | V3 | | Telnet Server | Syslog | | Dynamic DNS | 802.1q VLAN support | | Firewall | Embedded: QoS support | | Spanning Tree Protocol | 802.1x port-based network access control | | LEDs | 1 x power on
1 x Ethernet link
1 x signal strength | | Operating Power | 42 to 57 VDC | | Power | PD: IEEE 802.3af/at PD compliant
PSE Power: IEEE 802.3af PSE compliant | | Power Consumption | 8 W maximum (with no PD load connected to port 2) | | MTBF | Up to 100,000 hours | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity, Non-Condensing | 5 to 95% | | Dimensions | 10.0 × 10.0 × 3.4" / 25.7 × 25.7 × 8.6 cm | | Weight | 2 lb / 0.9 kg |
