User Manual for COMNET Passive Power Over Ethernet Midspan Injector for 10 100TX Click to enlarge the picture
Contents of the user manual for the COMNET Passive Power Over Ethernet Midspan
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Passive Power Over Ethernet Midspan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|

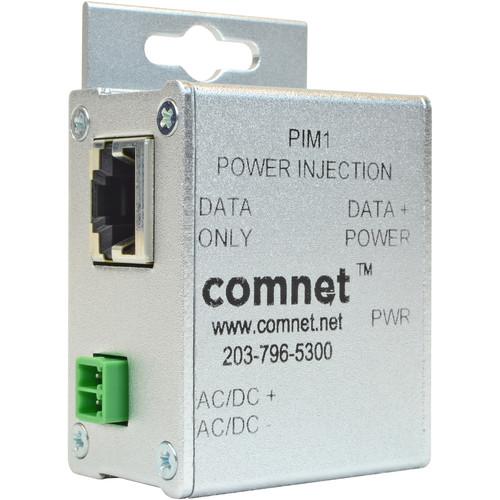

Product description The Passive Power Over Ethernet (PoE) Midspan Injector from ComNet is an industrial passive PoE midspan injection module that injects a passive voltage of 12 to 48 VDC (at up to 0.625A) to the unused pairs of any UTP or STP CAT-3, -4, or -5 network cable. This PoE eliminates the need to install additional power outlets and electrical cabling by combining operating power and 10/100TX Ethernet data on one cable. PIM1 supports transmission distance of up to 330' and can be used for devices drawing a maximum of 30W power. Requiring no user configuration or other set-up, the PIM1 is a true plug-and-play product. Housed in a compact, rugged, light-weight housing, it provides passive power at the same voltage level as the input power supply and can be used to power any devices that do not require IEEE 802.3af/at negotiation such as legacy PoE devices. - Features
-
- To provide flexible operating power for non-standard PoE devices, the PoE is powered by an external 12 to 48 VDC or 24 VAC power supply (not included)
- UL, CUL, FCC, CE, EN60950-1, and RoHS approved
- Applications
-
- Remote operating power for IP CCTV cameras for security and surveillance systems
- Remote operating power for Voice over IP (VOIP) telephony networks
- Remote operating power for wireless LAN access points
- Industrial security, transportation/ITS, and industrial control/factory automation IP networks
In the Box COMNET Passive Power Over Ethernet (PoE) Midspan Injector for 10/100TX Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Passive Power Over Ethernet Midspan Injector for 10 100TX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET PIM1 Specs | Connectors | RJ45 Data In/Out: Data/signal pairs pin 1,2,3,6
RJ45 Power Out: Power over spare wire pairs pin: 4,5 (V+) and 7,8 (V-) | | Network Cable Type | For 10Base-T:
UTP/STP CAT-3, 4, 5 cable
EIA/TIA-568 100 Ohms; 328' (100 m)
For 100Base-TX:
UTP/STP CAT-5 cable
EIA/TIA568 100 Ohms; 328' (100 m) | | Indicator LEDs | 1 x Power | | Circuit Board | Meets IPC standard | | Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX | | Approvals and Compliance | FCC Class B, CE; UL, cUL, CE/EN60950-1 | | MTBF | Up to 100,000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Operating Humidity | 0 to 95% (non-condensing) | | Input Power Supply | 12 to 48 VDC or 24 VAC | | Power Consumption | 30 W maximum | | Power Output | Same voltage as input (0.625 A maximum) | | Dimensions | 2.3 x 1.6 x 1.1" (5.7 x 4.1 x 2.8 cm) | | Weight | Not specified by the manufacturer |
