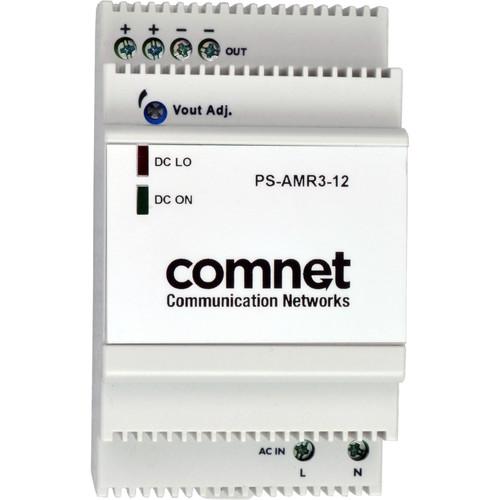

Product description The PS-AMR Series 12V Industrial DIN Rail Mounting Power Supply from ComNet is a high-quality, low-noise switching mode power supply that outputs 33W of power to ComNet industrial products with 12 VDC input. This rugged unit is DIN-rail mountable. With a wide operating temperature range of -40 to 159.8°F, this unit is suitable for installation in most out-of-plant and extreme environments, such as transportation systems or factory automation/industrial control applications. The unit comes with unconditional line and load protection. - Compatibility
- For ComNet industrial products with 12 VDC input
- Universal AC input of 90 to 264 VAC, 47 to 63 Hz
- Mounts on standard 7.5 or 15mm DIN-rail
- Adjustable output voltage range support
- High operating efficiency; up to 80%
- Small package for limited space installations
- Natural convection cooling
- Operating temperature ranges from -40 to 159.8°F
UPC: 845770012460 In the Box COMNET PS-AMR Series 12V Industrial DIN Rail Mounting Power Supply (33W) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET PS-AMR Series 12V Industrial DIN Rail Mounting Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET PS-AMR3-12 Specs | Output Wattage | 33 W | | Output Voltage | +12 VDC | | Output Current | 2750 mA | | Efficiency | Minimum: 80%
Typical: 80% | | Input Voltage | 90 to 264 VAC or 120 to 375 VDC | | AC Line Frequency | 47 to 63 Hz | | Input Current | 115/230 VAC, 680/410 mA | | Inrush Current | 115/230 VAC, 25/50 A | | Power Dissipation | 230 VAC, 7.3 W | | Voltage Accuracy | +1% | | Minimum Load | 0% | | Line Regulation | ±1% | | Voltage | Trim Range: 12 to 14 VDC | | Hold Up Time | 115/230 VAC: 20 / 100 ms | | Threshold | DC ON/LOW Indicator Threshold: 9 to 10.8 VDC | | Resistance | Isolation Resistance: Input-output, at 500 VDC, 100 MOhms
Derating: 132.8 to 159.8°F / 56 to 71°C, maximum 2.5%/°C | | Cooling | Normal convection (Recommend all sides 25 mm free space) | | Fuse | Input Fuse: 250 VAC internal, T2 A | | Surge Protection | IEC 61000-4-5 (internal) | | Overload Protection | 110 to 150% | | Over Voltage Protection | Auto Recovery
15 to 16.5 VDC | | Connector | AWG24-12 (0.2 to 2.5 mm²) flexible/solid cable | | Indicator LEDs | DC ON at start up (green)
DC LOW after start up (red) | | MTBF | >500,000 hours at 104°F / 40°C | | Operating Temperature | -40 to 159.8°F / -40 to 71°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 20 to 90% (non-condensing) | | Approvals and Compliance | UL/cUL:
UL 508 Listed
ISA:
12.12.01 (Class I, Div 2, Groups A, B, C, & D)
TUV:
EN 60950-I, CB scheme
CE:
EN 61000-6-3, EN 55022 Class B, EN 61000-3-2,
EN 61000-3-3, EN 61000-6-2, EN 55024,
EN 61000-4-2 Level 4, EN 61000-4-3 Level 3,
EN 61000-4-4-4 Level 4, EN 61000-4-5 L-N Level 3,
EN 61000-4-6 Level 3, EN 61000-4-8 Level 4,
EN 61000-4-11, ENV 50204 Level 2, EN 61204-3
Vibration:
Meets IEC 60068-2-6
Rail Mount: 10 - 500 Hz, 2G, 60 min for each Axis
Shock:
Meets IEC 60068-2-27
15G, 11 ms, 3-axis, 6 faces, 3 times for each face
IP Rating: IP20 | | Dimensions | 3.58 x 2.09 x 2.22" / 9.1 x 5.3 x 5.65 cm | | Weight | 6.72 oz / 190 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 8.1 x 6.4 x 4.5" |
