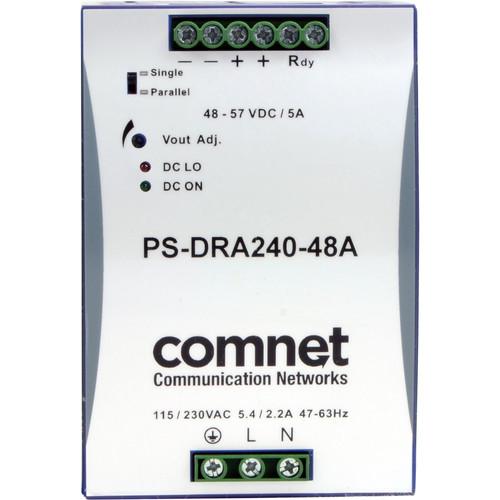

Product description The PS-DRA Series 48V Industrial DIN-Rail Mounted Power Supply from ComNet outputs 240W power to ComNet industrial products with a 48 VDC input. This rugged unit is DIN-rail mountable. With an operating temperature range of -40 to 160°F, this unit is suitable for installation in most out-of-plant and extreme environments, such as transportation systems or factory automation/industrial control applications. The unit comes with unconditional line and load protection. - Compatibility
- For ComNet industrial products with 48 VDC input
- Features
- Auto select 115/230 VAC input voltage
- Mounts on standard 7.5 or 15mm DIN rail
- Adjustable output voltage range support
- High operating efficiency; up to 90%
- Small package for limited space installations
- Natural convection cooling
- Operating temperature ranges from -40 to 160°F
In the Box COMNET PS-DRA Series 48V Industrial DIN-Rail Mounted Power Supply (240W) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET PS-DRA Series 48V Industrial DIN-Rail Mounted Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET PS-DRA240-48A Specs | Input Voltage | Rated 115/230 VAC (auto select) | | Input Range | Supported 90 to 264 VAC or 210 to 375 VDC | | Input Current | 115/230 VAC, 4.0/1.55 A | | Powerline Frequency | 47 to 63 Hz | | Inrush Current | 115/230 VAC, 30/60 A | | Power Dissipation | 230 VAC, 32 W | | Voltage Accuracy | +1% | | Minimum Load | 0% | | Line Regulation | ±0.5% | | Voltage | Trim Range: 47 to 56 VDC | | Hold Up Time | 115/230 VAC, 25/30 ms | | Threshold | DC Indicator: 37 to 43 VDC | | Output Wattage | 240 W | | Output Voltage | 48 VDC | | Output Current | 5 A at 48 VDC | | Effective Output Level | 88% minimum, 90% typical | | Fuse | Input: T6.3A, 250 VAC internal | | Surge Protection | Internal: IEC 61000-4-5 | | Overload Protection | 120 to 145% | | Over Voltage Protection | Auto recovery, 125 to 140% | | IP Rating | IP20 | | Screw | Terminal: AWG24-10 (0.2 - 4mm²) flexible / solid cable | | LED Indicator | DC On: At start up (Green)
DC Low: After start up (Red) | | Approvals | UL/cUL: UL 508 Listed, UL 60950-I, UL 1310 Class 2 power recognized, ISA 12.12.01 (Class I, Div 2, Groups A, B, C, & D)
TUV: EN 60950-I, CB scheme
CE: EN 61000-6-3, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 55024, EN 61000-4-2 Level 4, EN 61000-4-3 Level 3, EN 61000-4-4 Level 4, EN 61000-4-5 L-N Level 3, EN 61000-4-6 Level 3, EN 61000-4-8 Level 4, EN 61000-4-11, ENV 50204 Level 2, EN 61204-3
Vibration: Meets IEC 60068-2-6, Railmount 10 to 500 Hz, 2G, 60 minutes for each Axis
Shock: Meets IEC 60068-2-27 and 15G, 11 ms, 3 Axis, 6 faces, 3 times for each face | | MTBF | >435,000 hours at 40°C / 104°F | | Operating Temperature | -40 to 159.8°F / -40 to 71°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Relative Humidity | 20 to 95% (non-condensing) | | Case Construction | Metal | | Dimensions | 4.9 x 3.3 x 4.9" / 12.4 x 8.4 x 12.4 cm | | Weight | 3.04 lb / 1.37 kg |
