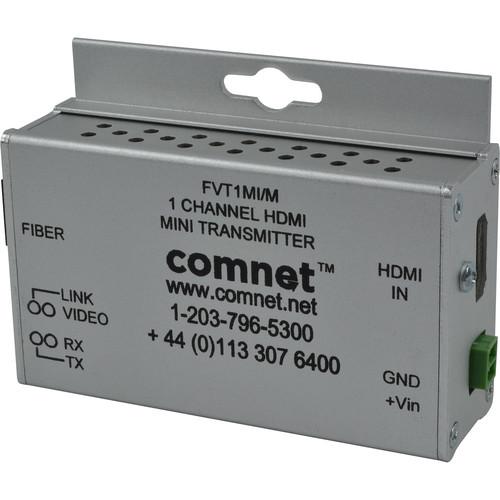

User Manual for COMNET Single-Channel Mini HDMI Transmitter Click to enlarge the picture
Contents of the user manual for the COMNET Single-Channel Mini HDMI Transmitter
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Single-Channel Mini HDMI Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet™ FVT/FVR(X)MI[/M] features an HDMI™ fiber link for uncompressed high-resolution bi-directional communication with full HDCP copyright protection, EDID and CEC connection functionality. The high-resolution signal is transmitted over one multimode fiber using multiple wavelengths up to 1000m. Resolutions of up to 1080p60 are supported. HDCP encryption is not affected or compromised by the FVT/FVR(X)MI units. The FVT/FVR(X)MI[/M] transmits pixel-for-pixel images and full 24-bit scan rate with no contouring or bit reduction. This unit is fully compatible with HDMI™ compliant sources and monitors, supporting all possible horizontal and vertical sync configurations. The CEC support provided by these units allows the user to communicate with up to ten CEC-enabled devices connected via HDMI™. The FVT/FVR(X)MI[/M] transmits up to 8 channels of uncompressed audio at sample sizes of 16-bit, 20-bit and 24-bit, with sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz. This series also supports any IEC 61937-compliant compressed audio stream, such as Dolby Digital and DTS , and up to 8 channels of one-bit DSD audio, as used on SA CD/Super Audio CDs, and at rates up to four times that of Super Audio CD, and lossless compressed audio streams such as Dolby True HD and DTS -HD Master Audio. A locking screw prevents the connectors from accidental disconnection. Packaged in either a small stand-alone housing or the exclusive ComNet ComFit housing, the FVT/FVR(X)MI standard size product may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. UPC: 845770008777 In the Box COMNET Single-Channel Mini HDMI Transmitter (Up to 3280') Mini HDMI Transmitter - Single Channel DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz Lifetime Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Single-Channel Mini HDMI Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT1MIM Specs | | | Connectivity Technology | Wired | | Number of Input Devices Supported | 1 | | Maximum Operating Distance | 3280.84 ft | | | | Graphics Modes | Full HD | | Maximum Video Resolution | 1920 x 1080 | | | | HDMI In | Yes | | Number of HDMI Inputs | 1 | | Number of ST Ports | 1 | | | | Media Type Supported | Optical Fiber | | | | Input Voltage | 120 V AC
15 V DC
230 V AC | | | | Height | 1.1" | | Width | 3.7" | | Length | 4.1" | | Form Factor | Surface-mountable | | | | Certifications & Standards | | | Environmentally Friendly | Yes | | Environmental Certification | RoHS
WEEE | | Country of Origin | United States |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
