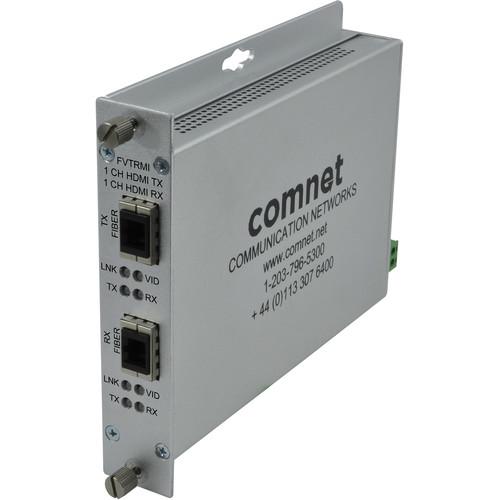

User Manual for COMNET Single-Channel Multimode HDMI over Multimode Fiber Transceiver with HDCP EDID CEC Click to enlarge the picture
Contents of the user manual for the COMNET Single-Channel Multimode HDMI over Multimode
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Single-Channel Multimode HDMI over Multimode contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVTRMI features an HDMI fiber link for uncompressed high-resolution bi-directional communication with full HDCP copyright protection, EDID and CEC connection functionality. The FVTRMI transmits pixel-forpixel images and full 24-bit scan rate with no contouring or bit reduction. Fully compatible with HDMI compliant sources and monitors, supporting all possible horizontal and vertical sync configurations. The FVTRMI transmits up to 8 channels of uncompressed audio at sample sizes of 16-bit, 20-bit and 24-bit, with sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz. This series also supports any IEC 61937-compliant compressed audio stream, such as Dolby Digital and DTS, and up to 8 channels of one-bit DSD audio (as used on SACD/ Super Audio CDs), and at rates up to four times that of Super Audio CD, and lossless compressed audio streams such as Dolby True HD and DTS-HD Master Audio.
- Key Features
-
- Supports up to 1080p60
- Scalable to HDMI Version 1.3a - 16 bit color
- Bi-directional communication for HDCP copyright, EDID and CEC functionality
- HDCP encoding remains intact and unmodified
- Fully uncompressed, 100% transparent, no frame dropping
- Locking cable screw prevents the connectors from accidental disconnection
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Hot-swappable modules
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Single-Channel Multimode HDMI over Multimode Fiber Transceiver with HDCP EDID CEC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVTRMI Specs | | | Device Type | Video/audio extender | | Form Factor | External - 1U | | | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Max Resolution | 1920 x 1080 / 1080p @ 60 Hz | | Max Transfer Distance | 0.6 miles | | Status Indicators | Link/activity | | Features | 1080p resolution support | | | | Interfaces | 2 x network - ST multi-mode
1 x HDMI - 19 pin HDMI Type A | | | | Rack Mounting Kit | Optional | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
