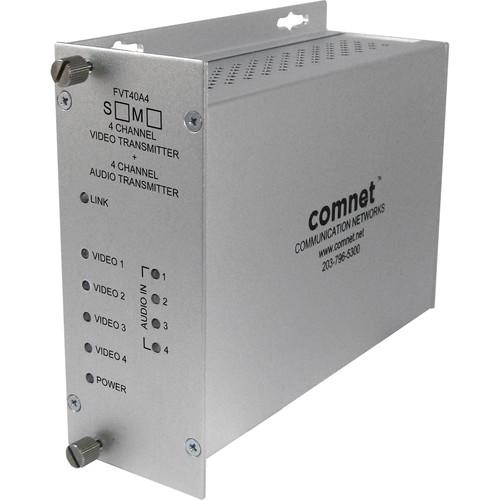

User Manual for COMNET Single Mode 1310 1550nm 4-Channel 10-Bit Video 24-Bit Audio Transmitter Click to enlarge the picture
Contents of the user manual for the COMNET Single Mode 1310 1550nm 4-Channel
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Single Mode 1310 1550nm 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT/FVR40A4 series video/audio multiplexer utilizes 10-bit video encoding for true EIA/TIA RS-250C Short-Haul broadcast quality transmission, and 24-bit encoding at a 96 Khz sampling rate for the highest possible audio fidelity. Digitally Encoded transmission ensures that the video and audio performance remain completely unaffected up to the maximum usable optical transmission distance or optical path loss. These environmentally hardened units provide the transmission of four independent simplex video and four independent simplex line-level audio channels over one multimode or single mode optical fiber.
- Key Features
-
- Wide optical dynamic range: optical attenuators are never required
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments
- Fully compliant with the environmental requirements of NEMA TS-2 for traffic signal control equipment
- Status indicating LEDs provide rapid indication of critical operating parameters
- 4 channels of 24-bit/96 Khz sampling rate digitally encoded audio for the highest possible audio quality
- Line-Level 600 ohm balanced audio input and audio output at a maximum level of +6dBm
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
UPC: 845770006643 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Single Mode 1310 1550nm 4-Channel 10-Bit Video 24-Bit Audio Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT40A4S Specs | | | Device Type | Video/audio extender | | Form Factor | External - 2U | | Built-In Devices | LED panel | | | | Connectivity Technology | Wired | | Optical Wave Length | 1310 nm / 1550 nm | | Max Transfer Distance | 29.8 miles | | Status Indicators | Power, link/activity, audio, video | | | | Interfaces | 1 x network - ST single-mode
4 x video - BNC
4 x audio - terminal block | | | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Consumption Operational | 4 Watt | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 2.2 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
