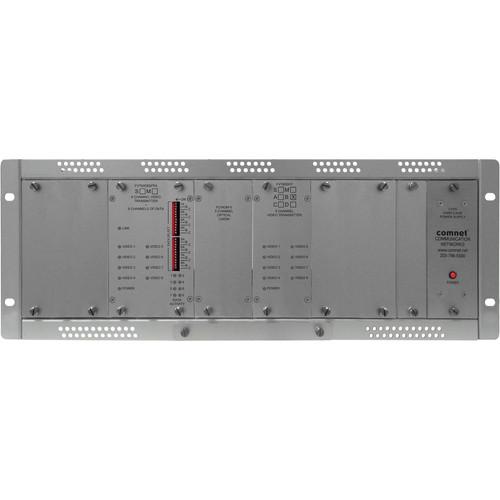

User Manual for COMNET Single Mode 16-Channel 10-Bit Digital Video Transmitter 8-Channel Bi-Directional Data Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET Single Mode 16-Channel 10-Bit Digital
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Single Mode 16-Channel 10-Bit Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT/FVR160D8S1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for highquality video transmission that exceeds the requirements of EIA RS-250C for shorthaul video transmission. These environmentally hardened units provide transmission of 16 independent video channels and eight bi-directional data channels over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems, data channels can be set independently for RS232, RS422 and 2 or 4-wire RS485, Sensornet, Bi-phase and Manchester. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Key Features
-
- 10-Bit digitally encoded video transmission, transmits 16 realtime/full frame color video signals and 8 bi-directional data signals on one optical fiber
- Supports RS232, RS422, and 2 or 4-wire RS485, Sensornet, Bi-phase and Manchester
- Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
- Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
UPC: 845770000603 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Single Mode 16-Channel 10-Bit Digital Video Transmitter 8-Channel Bi-Directional Data Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVT160D8S1 Specs | | | Device Type | Video/serial extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Max Transfer Distance | 22.4 miles | | Status Indicators | Power, transmit, receive | | | | Interfaces | 16 x video - BNC
1 x network - ST single-mode
8 x RS-232/422/485 - RJ-45 | | | | MTBF | 100,000 hours | | Compliant Standards | Plug and Play, RoHS, cULus | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V | | Power Consumption Operational | 70 Watt | | | | Width | 18.9 in | | Depth | 7.5 in | | Height | 5.9 in | | Weight | 7.94 lbs | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
