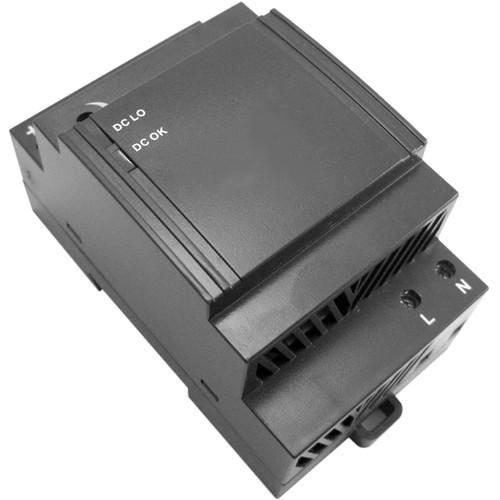

User Manual for COMNET Switch Mode Power Supply Click to enlarge the picture
Contents of the user manual for the COMNET Switch Mode Power Supply
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Switch Mode Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description An environmentally hardened unit, the Switch Mode Power Supply from ComNet is a low-profile solution for building automation, and other types of installations. Bi-color (red/green) LED indicators are provided for rapidly ascertaining equipment operating status. -
- Low profile, 2.2” tall unit for building automation
- Wide range AC input
- 24 VDC output
- Class ll double insulation
- Global use with no input selector switches
- Convection cooled
- No de-rating needed
In the Box COMNET Switch Mode Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Switch Mode Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET PS24-1A Specs | Voltage Output | 24 VDC | | AC Voltage Input Range | 100 to 240 VAC, Class ll double insulated (no ground connection required) | | Input Frequency | 47 to 63 Hz | | Input Current | 800 mA | | Efficiency | >83% (typical) | | Power | 30 W | | Current | 1.3 A | | Output Voltage | +1% of Nominal | | Ripple and Noise | 50 mV (20 MHz BW) | | Overvoltage Protection | 120 to 145% | | Power Supply | Switching (Closed Frame) | | Safety Agency Approvals | UL1310 Class 2, UL508 Listed, UL60950-1, EN60950-1, CE | | Power Indicators | Green: Power On
Red: Output Low | | RoHS | Compliant | | MTBF | >100,000 hours | | Operating Temperature | -40 to 185˚F (-40 to 85˚C) | | Storage Temperature | -40 to 185˚F (-40 to 85˚C) | | Humidity | 20 to 95% RH (non-condensing) | | EMI | PS24: EN55022 Class A | | Dimensions (L x W x H) | 3.6 x 3.5 x 2.2" (9.0 x 8.9 x 5.7 cm) |
