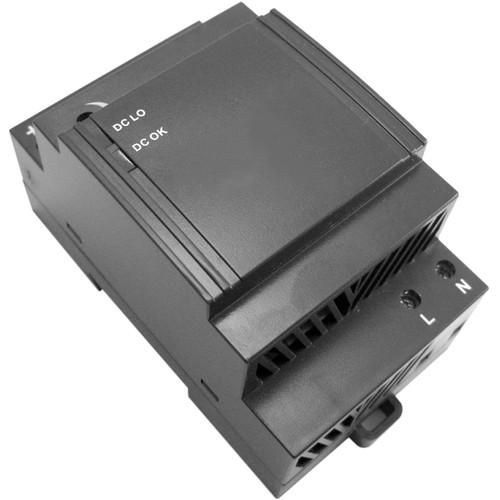

Product description An environmentally hardened unit, this Switch Mode Power Supply from ComNet is a low-profile solution for building automation. It is double-insulated with a DIN rail mount, and ideal for multiple types of installations. Bicolor (red/green) LED indicators are provided for rapidly ascertaining equipment operating status. -
- Low profile, 2.2” tall unit for building automation
- Wide range AC input
- 24 VDC output
- Class ll double insulation
- DIN rail mount
- Global use with no input selector switches
- Convection cooled
- No derating needed
In the Box COMNET Switch Mode Power Supply with DIN Rail Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Switch Mode Power Supply with DIN Rail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET PS24-1A-DIN Specs | Voltage Output | 24 VDC | | AC Voltage Input Range | 100 to 240 VAC, Class ll double-insulated (no ground connection required) | | Input Frequency | 47 to 63 Hz | | Input Current | 800 mA | | Efficiency | >83% (typical) | | Power | 30 W | | Current | 1.3 A | | Output Voltage | Within 1% of nominal | | Ripple and Noise | 50 mV (20 MHz BW) | | Overvoltage Protection | 120 to 145% | | Power Supply | Switching (closed frame) | | Mounting | DIN rail | | Safety Agency Approvals | UL1310 Class 2, UL508 Listed, UL60950-1, EN60950-1, CE | | Power Indicators | Green: Power on
Red: Output low | | RoHS | Compliant | | MTBF | >100,000 hours | | Operating Temperature | -13 to 160°F / -25 to 71°C, ambient
Derate linearly 2.5%/°C from 142 to 160°F / 61 to 71°C | | Storage Temperature | 77 to 185°F / -25 to 85°C ambient | | Humidity | 20 to 95% RH (non-condensing) | | EMI | PS24: EN55022 Class A | | Dimensions (L x W x H) | 3.6 x 3.5 x 2.2" / 9.0 x 8.9 x 5.7 cm |
