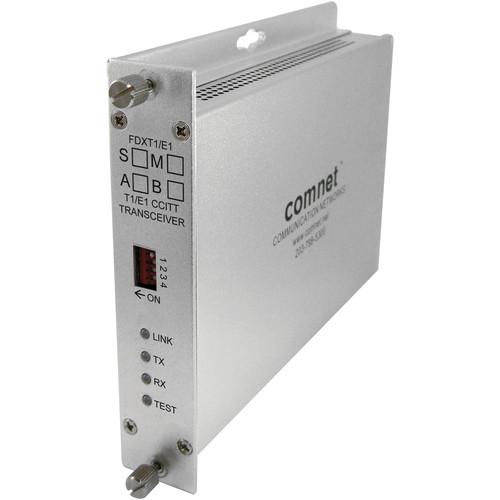

Product description The B-End T1/E1 Point-to-Point Single-mode Transceiver from ComNet transmits AMI and B8ZS data signals over a single-mode optical fiber when paired with the B-End unit. The transceiver synchronizes and regenerates data to eliminate jitter accumulated through the link. It can be used with a single-mode optical fiber. The plug-and-play design ensures ease of installation requiring no electrical or optical adjustments. The transceiver incorporates a bi-color (red/green) indicating LED for monitoring proper system operation. The FDXT1/ E1 standard size unit can be either wall or rack-mounted in a ComNet card cage. -
- Robust design assures reliability in unconditioned out-of-plant/roadside environments
- LED status indicators confirm operating status
- Designed for installation in harsh out-of-plant/unconditioned industrial or roadside operating environments (-40 to 158°F ambient)
- Fully compliant with the environmental requirements of NEMA TS-1/TS-2 for Traffic Signal Control Equipment
- Remote Fault Indication allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed
- Voltage transient protection on all power and signal input/output lines
- Optical attenuators are never required thanks to the Wide Optical Dynamic Range
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use
- Single fiber design
- Can be used in T1/Ds-1 and E1 telephony networks, ITS / traffic signal control equipment, building automation and environmental control systems, and computer/data equipment
In the Box COMNET T1/E1 Universal Point-to-Point Single-Mode Transceiver (B-End) 9 VDC Plug-in Power Supply Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET T1 E1 Universal Point-to-Point Single-Mode Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDXT1/E1S1(B) Specs | | | Data Format | T1/E1 AMI or B8ZS DSL communications | | Data Rate | T1: 1.544 Mbps
E1: 2.048 Mbps | | Operating Mode | Asynchronous, simplex or full-duplex | | Bit Error Rate | <10 to 12 at Maximum Optical Loss Budget | | Wavelength | 1310 nm (single-mode) | | Fiber | 9/125 μm | | Number of Fibers | 1 | | Optical Power Budget | 23 dB | | Maximum Distance | 43 mi (69 km) | | Optical Emitter | Laser diode | | LED Indicators | Power indicator
Receive data active
Transmit data active
Test | | Connectors | Power: Terminal Block
Optical: ST
RJ-45 for T1 (break out kit included) BNC for E1 | | | | MTBF | >100.000 hours | | Operating Temperature | -40 to 167°F (-40 to 75°C) | | Storage Temperature | -40 to 185°F (-40 to 85°C) | | Relative Humidity (non-condensing) | 0 to 95% | | | | Power | 9 VDC at 2 W
Rack Power: From rack | | Number of Rack Slots | 1 Order model for ComNet or IFS racks | | Current Protection | Automatic resettable solid-state current limiters | | Circuit Board | Meets IPC standard | | Dimensions (L x W x H) | 6.1 x 5.3 x 1.1" (15.5 x 13.5 x 2.8 cm) |
