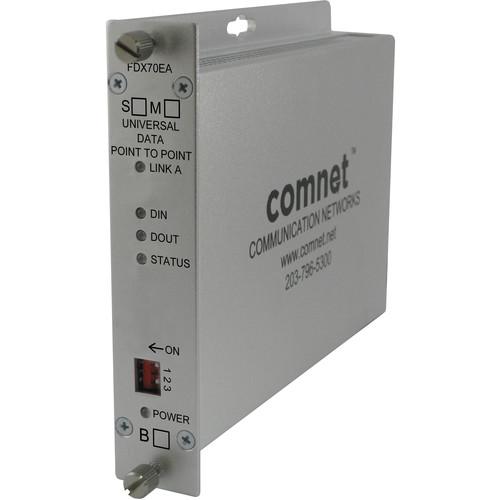

User Manual for COMNET Universal RS232 422 485 Data Point-to-Point "A" End Multimode Transceiver Click to enlarge the picture
Contents of the user manual for the COMNET Universal RS232 422 485 Data
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Universal RS232 422 485 Data contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FDX70 data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data signals over one single mode or multimode optical fiber. The transceivers are transparent to data encoding allowing for broad-range compatibility. Plug-and-Play design ensures ease of installation requiring no electrical or optical adjustments.
- Key Features
-
- Meets EIA RS232C/D and RS422/RS485 (2 or 4-wire) specifications
- Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
- NTCIP compatible
- Remote Fault Indication allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Wide optical dynamic range: optical attenuators are never required
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Universal RS232 422 485 Data Point-to-Point "A" End Multimode Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDX70EAM1 Specs | | | Device Type | Fiber media converter | | Form Factor | External - 1U | | | | Connectivity Technology | Wired | | Cabling type | Serial RS-232, serial RS-422, serial RS-485 | | Optical Wave Length | 1310 nm / 1550 nm | | Line Coding Format | Manchester | | Max Transfer Distance | 2.5 miles | | Status Indicators | Power, status, transmit, receive | | Features | Full duplex mode, over-current protection | | | | Interfaces | 1 x RS-232/422/485 - terminal block
1 x network - ST multi-mode female | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus, NEMA TS-2, NEMA TS-1 | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 4 Watt | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
