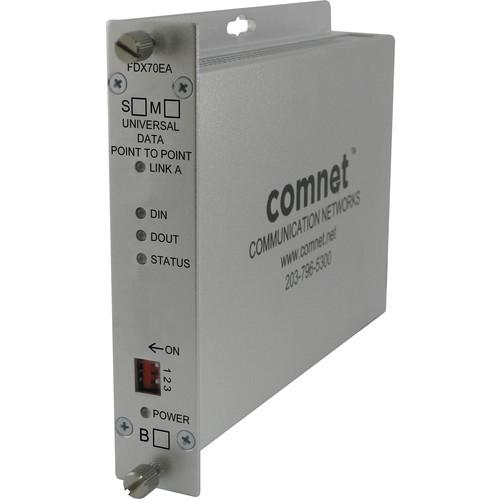

Product description Provided by third party: The ComNet drop-insert-repeat transceiver unit is a fully-digital modem designed for implementing RS232, RS422 or RS485 2 or 4-wire data communications networks of high reliability. These transceivers also feature data translation to convert between data protocols. Data re-clocking and regeneration permit an almost unlimited number of transceiver/controller units to be used within the network. These environmentally hardened transceivers are ideal for use in unconditioned out-of-plant or roadside installations and, unlike many competing designs, only one optical fiber is required between units. Plug-and-Play design ensures ease of installation, and no electrical or optical adjustments are ever required.
- Key Features
-
- Full data re-clocking and regeneration - no limit to the number of transceiver units used within the network
- Supports supervised multiple master architecture for unparalleled network reliability
- Remote fault indication allows the user to determine when a fiber break or loss of prime operating power has occurred
- LED status indicators provide rapid indication of all critical operating parameters, including the location of fiber breaks or failed transceivers
- Designed to meet full compliance with the environmental requirements
- Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
- NTCIP compatible
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges
- Wide optical dynamic range - optical attenuators are never required
- Hot-swappable rack modules
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Universal RS232 422 485 Data Point-to-Point "B" End Single Mode Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FDX70EBS1 Specs | | | Device Type | Fiber media converter | | Form Factor | External | | | | Connectivity Technology | Wired | | Cabling type | Serial RS-232, serial RS-422, serial RS-485 | | Optical Wave Length | 1310 nm / 1550 nm | | Line Coding Format | Manchester | | Max Transfer Distance | 42.9 miles | | Status Indicators | Power, status, transmit, receive | | Features | Full duplex mode, over-current protection | | | | Interfaces | 1 x RS-232/422/485 - terminal block
1 x network - ST single-mode female | | | | MTBF | 100,000 hours | | Compliant Standards | FCC Part 15, RoHS, cULus, NEMA TS-2, NEMA TS-1 | | | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 4 Watt | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
