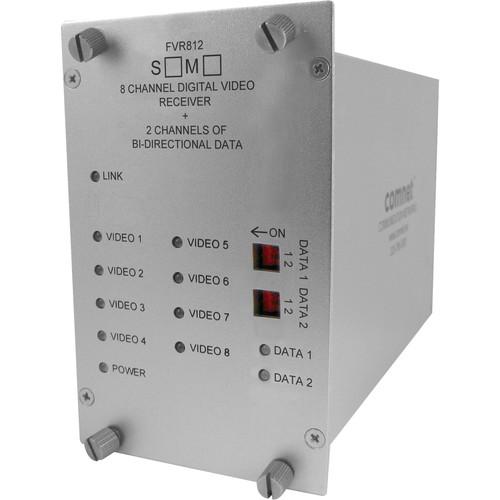

User Manual for COMNET ValueLine Single Mode 1550 1310nm 8-Channel Digital Video Receiver 2-Channel Bi-Directional Data Transceiver with Contact Closure Click to enlarge the picture
Contents of the user manual for the COMNET ValueLine Single Mode 1550 1310nm
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET ValueLine Single Mode 1550 1310nm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVR812(M)(S)1 series transmits eight channels of video utilizing state of the art digital encoding and decoding for high-quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVR812 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and 485 (2 & 4 Wire) data. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are required. Bi-Color LED indicators are provided to indicate the status of the system, video and data.
- Key Features
-
- Digitally-encoded video transmission: transmits 8 realtime color video signals and 2 bi-directional data signals on one optical fiber
- Supports RS232, RS422, and 2- or 4-wire RS485
- One bi-directional contact closure
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
UPC: 845770005301 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET ValueLine Single Mode 1550 1310nm 8-Channel Digital Video Receiver 2-Channel Bi-Directional Data Transceiver with Contact Closure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR812S1 Specs | | | Device Type | Video/serial/contact closure extender | | Form Factor | External | | | | Connectivity Technology | Wired | | Optical Wave Length | 1550 nm / 1310 nm | | Line Coding Format | NRZ, NRZI, Manchester | | Max Transfer Distance | 29.8 miles | | Features | Full duplex capability | | | | Interfaces | 2 x RS-232/422/485 (output) - terminal block
8 x video (output) - BNC female
1 x network (input) - ST single-mode
1 x contact closure | | | | Rack Mounting Kit | Optional | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 3.3 in | | | | Service & Support | Limited warranty - 5 years | | | | Min Operating Temperature | -40
