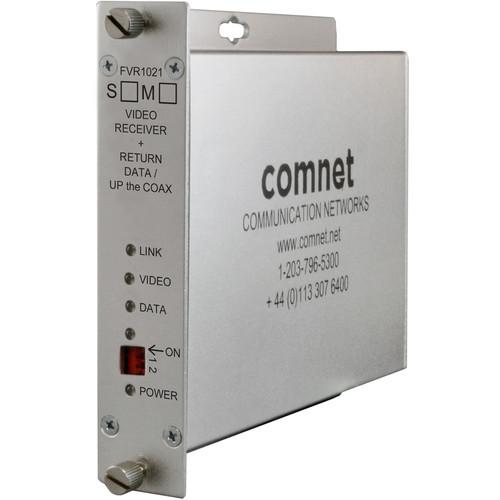

User Manual for COMNET Video Receiver Return Data Transceiver with Multimode 1550 1310nm 10-Bit Digital Video Click to enlarge the picture
Contents of the user manual for the COMNET Video Receiver Return Data Transceiver
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Video Receiver Return Data Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVR1021 series video receiver and data receiver supports the simultaneous transmission of short-haul quality 10-bit Digitally Encoded video and return data over one multimode mode optical fiber. This module is universally compatible with major CCTV camera manufacturers and supports RS-232 and RS-422 data interfaces. The FVT/FVR1021 allows the user to set the data through a switch on the unit. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status.
- Key Features
-
- 10-bit digital video transmission
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Full color compatibility
- Exceeds RS-250C short-haul quality
- Supports RS-232 and RS-422 data interfaces
- Supports manchester and bi-phase data
- No In-field electrical or optical adjustments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Integrated WDM for greater product reliability
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- Automatic resettable fuses on all power lines
UPC: 845770002652 Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Video Receiver Return Data Transceiver with Multimode 1550 1310nm 10-Bit Digital Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET FVR1021M1 Specs | | | Device Type | Video/serial extender | | Form Factor | Rack-mountable - 1U | | | | Connectivity Technology | Wired | | Optical Wave Length | 1310 nm / 1550 nm | | Line Coding Format | NRZ, NRZI, Manchester | | Max Transfer Distance | 1.9 miles | | Features | Full duplex capability | | | | Interfaces | 1 x RS-232/422 - terminal block
1 x video - BNC female
1 x network - ST multi-mode | | | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | | | Width | 5.3 in | | Depth | 6.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
