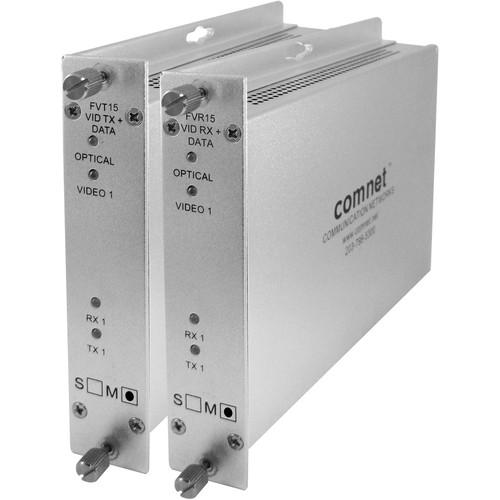

User Manual for COMNET Video with Return Data Extender Set over Dual Multimode Fibers Click to enlarge the picture
Contents of the user manual for the COMNET Video with Return Data Extender
- Product category: Signal Extenders COMNET
- Brand: COMNET
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for COMNET Signal Extenders
|
User manual for the COMNET Video with Return Data Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any COMNET product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official COMNET user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a COMNET product will considerably shorten its lifespan!
|
Product description Provided by third party: The ComNet FVT15M2 video transmitter/data receiver and the FVR15M2 video receiver/data transmitter support the simultaneous transmission of video and return data over two multimode optical fibers. These modules are universally compatible with all major CCTV camera manufacturers and supports RS232 and RS422 data interfaces and all major data protocols. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- Key Features
-
- AM video transmission and reception
- NTSC, PAL, or SECAM compatible
- Full color compatibility
- NTCIP compatible
- Supports RS232 or RS422 data interfaces
- Transparent to data encoding/compatible with major CCTV camera manufacturers
- No in-field electrical or optical adjustments
- Bi-color (red/green) LED status indicators provide rapid indication of critical operating parameters
- Distances up to 1.5 miles (2.5 km) without repeaters
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- Automatic resettable fuses on all power lines
Table of Contents
|
Upload User Manual
Have you got an user manual for the COMNET Video with Return Data Extender Set over Dual Multimode Fibers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCOMNET COMPAK15M2 Specs | | | Device Type | Video/serial extender | | Form Factor | External - 1U | | | | Connectivity Technology | Wired | | Optical Wave Length | 850 nm | | Max Transfer Distance | 1.6 miles | | | | Interfaces | 1 x RS-232/422
Network - ST multi-mode
Video - BNC | | | | MTBF | 100,000 hours | | Compliant Standards | FCC, RoHS, cULus | | Pricing Type | FVT15M2 Mini Video Transmitter, FVR15M2 AGC Mini Video Receiver | | | | Power Device | External power adapter | | Voltage Required | AC 90 - 264 V | | Power Consumption Operational | 4 Watt | | | | Width | 6.1 in | | Depth | 5.3 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - lifetime | | | | Min Operating Temperature | -40
