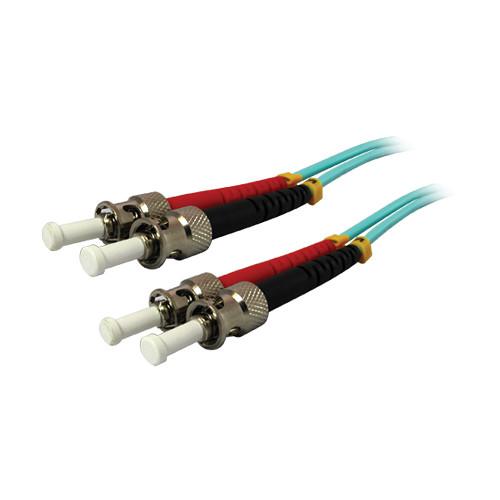

User Manual for Comprehensive 10GB ST ST Duplex 50 125 Multimode Fiber Patch Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive 10GB ST ST Duplex 50
- Product category: Fiber Channel Cables & Adapters Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Fiber Channel Cables & Adapters
|
User manual for the Comprehensive 10GB ST ST Duplex 50 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The aqua colored 6.5' 10GB ST/ST Duplex 50/125 Multimode Fiber Patch Cable from Comprehensive is a laser-optimized multimode fiber (LOMMF) cable that provides backward compatibility with existing 50/125 equipment while providing the performance headroom required to support laser light sources and 10 Gigabit applications. This Optical Multimode 3 (OM3) fiber cable supports 2,000 MHz/km EMB at 850nm, and provides 10 Gigabit transfers up to 984.2' (300m) using an 850nm VCSEL source. The aqua colored jacket is PVC (OFNR-rated). - Duplex cable is joined together in a zipcord style for easy separation
- Features a laser-optimized 50µm core and 125µm cladding
- Can be used with both LED and VCSEL laser light sources
- Ceramic ferrules for long-lasting reliability and precision alignment
- Used to connect patch panels and/or network devices that require 50/125 multimode cabling
- OFNR jacket complies with stringent building codes
UPC: 808447068429 In the Box Comprehensive 10GB ST/ST Duplex 50/125 Multimode Fiber Patch Cable (Aqua, 6.5') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 10GB ST ST Duplex 50 125 Multimode Fiber Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive ST-ST-OM3-2M Specs | Connector | 2 x ST male | | Fiber Type | Optical Multimode 3 (OM3) fiber supporting 2,000 MHz/km EMB at 850 nm | | Loss | Maximum Connector Loss: 0.3 dB
Typical Connector Loss: 0.2 dB
Typical Return Loss: -25 dB | | Construction | Buffer Material: PVC
Buffer OD: 0.035" (900 µm)
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 0.1" (3.0 mm) | | Additional | Installation Tensile Load: 100 N (445 lb / 202 kg)
Long-Term Tensile Load: 50 N (222 lb / 101 kg)
Maximum Tensile Load: 100 N/cm
Installation (Loaded) Minimum Bend Radius: 1.97" (5.00 cm)
Long-Term (Unloaded) Minimum Bend Radius: 1.2" (3.0 cm)
Crush Resistance: 750 N/cm
Impact Resistance: 1,000 cycles
Flex Resistance: 5,000 cycles
Attenuation at 1,300 nm: 1 dB/km
Attenuation at 850 nm: 3.5 dB/km | | Operating Temperature | -4 to 176°F (-20 to 80°C) | | Compliance | RoHS | | Dimensions (H x W x D) | ST Connector: 0.38 x 0.77 x 2.32" (9.80 x 19.60 x 59.00 mm) | | Cable Length | 6.5' (2.0 m) | | Weight | 0.1 lb (45.3 g) |
