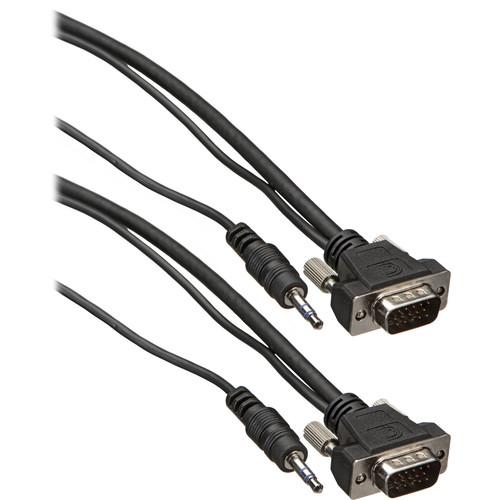

User Manual for Comprehensive 12' HR Pro Series Micro VGA HD15 Plug to Plug with Audio Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive 12' HR Pro Series Micro
- Product category: VGA to VGA Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive VGA to VGA Cables
|
User manual for the Comprehensive 12' HR Pro Series Micro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The 12' HR Pro Series Micro VGA HD15 Plug to Plug with Audio Cable from Comprehensive is perfect for those compact spaces where a full size HD15 connector would be too large. This cable features true high-resolution construction with three individually 95% shielded coaxes for maximum signal transfer and high-resolution video and graphics. The entire cable is 100% shielded with aluminum foil to eliminate EM and RF interference, even over long distances. The pins are machined to ensure strength, so they do not bend or break. A 3.5mm (0.13") stereo mini plug ausdio cable is integrated for easy connection of projectors, laptops and other equipment. The cable offers a multitude of connections and a lifetime of worry-free use. - Micro HD15 Male to HD15 Male
- Integrated 3.5mm (0.13") stereo mini plug audio cable
- Designed to support high-resolution imaging up to QXGA 2048x1536
- Three individually 95% tinned copper braid shielded coaxes
- 100% Aluminum foil wrap provides additional shielding
- Micro molded design for easy connection in compact spaces
- Molded strain relief for unsurpassed durability
- Xtra-Flex jacket for easy installation
UPC: 808447065145 In the Box Comprehensive 12' HR Pro Series Micro VGA HD15 Plug to Plug with Audio Cable Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 12' HR Pro Series Micro VGA HD15 Plug to Plug with Audio Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive MVGA15P-P-12HR/A Specs | Cable Length | 12' (3.65 m) | | Connector 1 | HD15 Male with stereo 3.5 mm (0.13") Male Audio Plug | | Connector 2 | HD15 Male with stereo 3.5 mm (0.13") Male Audio Plug | | Resolution | 2048 x 1536 | | Voltage | 30 V | | Gauge | 32 AWG | | Center Conductor | Tinned Copper | | Connector Finish | Nickel | | UL Rated | Yes | | RoHS Compliant | Yes | | Ferrite Cores | No | | Jacket Type | Xtra-Flex PVC | | Temperature Rating | 176°F (80°C) | | Dimensions | Not specified by the manufacturer | | Weight | 1.6 lb (0.72 Kg) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.1 x 6.0 x 0.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 59 owners. Add your rating and experience with the product.
