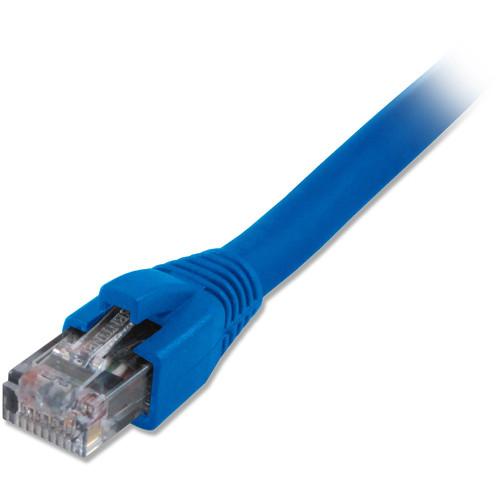

User Manual for Comprehensive 200' Cat6 Snagless Solid Plenum Shielded Patch Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive 200' Cat6 Snagless Solid Plenum
- Product category: Ethernet Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Ethernet Cables
|
User manual for the Comprehensive 200' Cat6 Snagless Solid Plenum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description Supporting a variety of category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM, the 200' Cat6 Snagless Solid Plenum Shielded Patch Cable from Comprehensive is a versatile and effective solution for a variety of networking needs. This shielded twisted pair plenum cable can also support high bandwidth applications including 622 ATM, wideband, and Ethernet 1000BASE-T making it suitable for networking environments in which high bandwidth applications supporting data, voice, and video are employed simultaneously. - High-performance data communications cable for noisy environments
- Suitable for 5 MHz high-speed data applications, Gigabit Ethernet, Fast Ethernet, and 155 Mbps TP-PMD/CCDI
- Category-6 shielded twisted pair (FTP) plenum cable
- 4-pair easily identified color-striped pairs
- 23 AWG solid bare copper conductors
- Enhanced attenuation and crosstalk characteristics
- Exceeds EIA/TIA 568 B/2-1, UL, CSA and ISO/IEC 11801 specifications
- CMP/FT6 rated for use in walls and in ceiling
UPC: 808447078299 In the Box Comprehensive 200' Cat6 Snagless Solid Plenum Shielded Patch Cable (Blue) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 200' Cat6 Snagless Solid Plenum Shielded Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CAT6SHP-200BLU Specs | | | Mutual Capacitance | 14 pF/ft nominal | | Maximum Capacitance Unbalance | 330 pF/ft | | Velocity of Propagation | 72% | | Conductor | Maximum Conductor D.C.R.: 28.6 ohm/1,000 feet | | Maximum DCR Unbalanced | 5% | | Delay Skew | 45.0 ns/100 m (maximum) | | Characteristic Impedance | From 0.772 - 100 MHz 100 -15%, from 101 - 250 MHz 100 -22% | | | | Temperature Rating | Installation: 32 to 122°F / -0 to 50°C
Operation: 28.4 to 140°F / -2 to 60°C | | Jacket Color | Blue | | | | Cable Standard | ANSI/TIA/EIA 568C.2 Category 6
National Electric Code - Article 800 | | | | Codes | NFPA 262 Plenum Flame Test, FT6
ETL Electrically Verified to ANSI/TIA/EIA 568C.2 Category 6
C (ETL )US CMP, FT6 | | RoHS Compliant | Yes | | | | Dimensions | Nominal Diameter: 0.305" /
Length: 200' / 61.0 m | | Weight | 49 lb-1,000' / 22.2 kg-304.8 m | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 14.8 x 8.9 x 2.9" |
