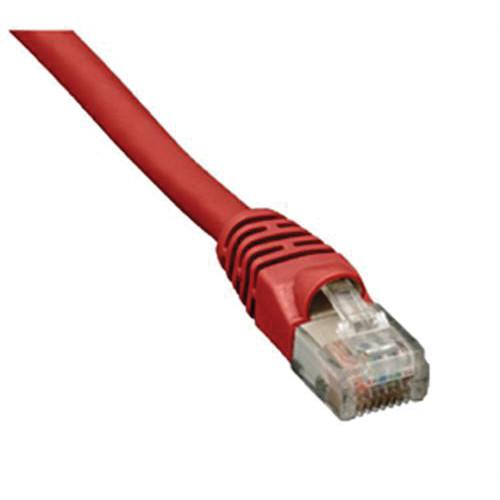

Product description The Comprehensive 25' CAT6 Crossover Cable (Red Finish) helps you connect your computers over the network and get 550 MHz of bandwidth. By reversing transmit and receive pairs on one end of the cable, you can connect computers directly to each other without a hub. This cable is also ideal for adding a hub without a crossover port. - 50-micron gold-plated RJ-45 male to male connector
- 24 AWG stranded copper conductor
- Molded, snag-free boot prevents unwanted cable snags while providing easy insertion and extraction from network ports
- Crossed-pin configuration allows you to connect 2 computers (peer-to-peer) without the need for a hub or switch
- Suitable for connecting network switches and hubs without an uplink port to their switches and hubs
UPC: 808447053531 In the Box Comprehensive 25' CAT6 Crossover Cable (Red Finish) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 25' CAT6 Crossover Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CAT6-X-25RED Specs | Connector Type | Type 1 & 2: RJ45 Male | | Length | 25' (7.62 m) | | Performance Grade | Good | | Bandwidth | Supports voice, data, & video distribution applications up to 550 MHz | | Standards | Meets all Cat6 TIA / EIA standards, verified to EIA / TIA 568B.2 | | Style | Cable: Shielded CAT6A molded snagless boot | | Conductors | 4 twisted pairs 24 AWG bare copper stranded cable | | Conductor DC Resistance | 9.8 Ω at 100 m (maximum) | | Material | Connector: Polycarbonate
Contact: Copper alloy-plated with 50u gold | | Jacket | PVC | | RoHS Compliant | Yes | | Outer Diameter | 0.24" (6.2 mm) | | Weight | 0.25 lb (0.11 kg) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.5 x 6.6 x 1.0" |
