User Manual for Comprehensive 4 x 1 UHD 4K HDMI Switcher Click to enlarge the picture
Contents of the user manual for the Comprehensive 4 x 1 UHD 4K
- Product category: Routers & Switchers Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Routers & Switchers
|
User manual for the Comprehensive 4 x 1 UHD 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

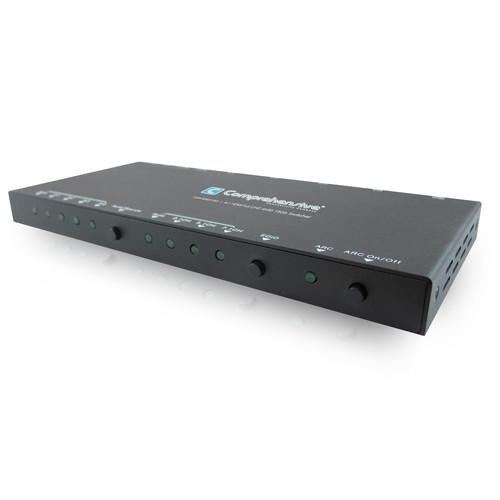

Product description The 4 x 1 UHD 4K HDMI Switcher from Comprehensive supports 3D video, 12-bit deep color, and high-definition audio. With repeater, CEC, and ARC functions, it switches four HDMI inputs to one HDMI display and can extract HDMI stream audio to separate digital and analog audio output. Users can easily select between the inputs using the front panel buttons, IR remote, or RS232 PC control.
This HDMI switcher accepts video signals up to UHD 4K at 60 Hz (YUV444), and is capable of receiving and transmitting up to 18 Gbps of bandwidth with no data loss. It has a slim chassis design with a durable metal enclosure. The switcher is suitable for huddle spaces, classrooms, conference rooms, showroom displays, lecture halls, retail sales displays, and more. - Supports video formats up to UHD 4K x 2K at 60 Hz (YUV444) and HDMI 3D TV formats
- HDMI 2.0a, HDMI 1.4b, DVI 1.0, HDCP 2.2, and HDCP 1.4 compliant
- Supports PCM, Dolby TrueHD, and DTS-HD Master Audio up to 7.1-ch digital and analog audio output
- Built-in TMDS equalization and CDR (Clock Rate Recovery) for long HDMI cable transmission
- Supports 2.1/5.1/7.1-ch audio
- Equipped with input port auto switching or manual switching mode
- Audio Return Channel (ARC) functionality controlled by front panel button or IR remote
- IR and panel button control
UPC: 808447078756 In the Box Comprehensive 4 x 1 UHD 4K HDMI Switcher 5 VDC / 1A Power Adapter (US, CE/FCC/UL Certified) 5 V USB to DC Power Supply Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 4 x 1 UHD 4K HDMI Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CSW-HD40118G Specs | Input Ports | 4 x HDMI female
1 x IR receive
1 x RS232 | | Output Ports | 1 x HDMI female
1 x L/R and optical | | HDMI Compliance | HDMI 2.0a/HDMI 1.4b | | Video Bandwidth | 18 Gbps | | Video Resolutions | Up to 4K x 2K at 60 Hz (4:4:4)
4K x 2K at 30 Hz
1080p at 120 Hz
1080p 3D at 60 Hz | | HDCP compliance | HDCP 1.4/HDCP 2.2 (supports HDCP 1.4 to HDCP 2.2 and HDCP 2.2 to HDCP 1.4 conversions) | | HDMI Audio Output | PCM 2.1/5.1/7.1-ch, Dolby 5.1, DTS 5.1, Dolby-TrueHD, and DTS-HD | | ESD Protection | Human Body Model:
±8 kV (air-gap discharge)
±4 kV (contact discharge) | | Power Consumption (Maximum) | 2.5 W | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Dimensions | 7.1 x 3.3 x 0.5" (180 x 85 x 11.6 mm) | | Weight | 10.6 oz (300 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.9 x 7.2 x 2.3" |
