Product description The Comprehensive 4K HDBaseT Wall Plate Extender features a wall-plate transmitter and a compact, all-metal receiver that allow you to transmit HDMI and VGA signals over a single Cat 5/5e/6 UTP cable. Send up to an Ultra HD 4K at 30 fps HDMI video signal with embedded audio up to 115', 1080p60 HDMI signal up to 230', or 1080p60 VGA signal 230'. A separate audio input allows you to connect an audio signal along with the VGA input and transmit it as well up to 230'. The transmitter is designed for U.S. dual-gang boxes. - Key Features
-
- Wall plate transmitter and compact all-metal receiver kit
- Transmit an HDMI or VGA signal with analog audio over a single Cat 5/5e/6 UTP cable
- Supports up to Ultra HD 4K/30 via HDMI, up to 1080p60 via VGA
- Up to 115' 4K / 230' 1080p HDMI transmission
- Up to 230' VGA transmission
- Easy wall box connection
- Auto EQ adjustment for optimal signal clarity
- Auto, manual, and RS-232 source selection
- Auto-sensing auto-select of the last video source
- HDCP-compliant
- 3D-video and Blu-ray ready
- Screen Shift Mode: Easy image adjustment
- Resolution Alternation Mode: Select and alter the video resolution using a button on the front of the transmitter; either switch to the next available resolution or switch back to the previous resolution
- Plug-and-play operation (no drivers or software installation required)

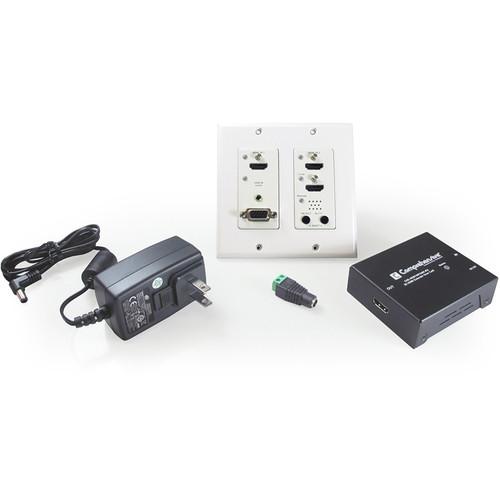

UPC: 808447079722 In the Box Comprehensive 4K HDBaseT Wall Plate Extender with HDMI & VGA/Audio Transmitter Unit U.S. Dual-Gang Decora Plate (Plastic) Wall-Plate Installation Screws 12 VDC Adapter DC Jack to Terminal Block Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 4K HDBaseT Wall Plate Extender with HDMI & VGA Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CHE-HDBTWP230K Specs | Inputs | HDMI: 2 x HDMI type A
VGA: 1 x DE-15
Analog Stereo Audio: 1 x 3.5 mm | | Outputs | HDMI: 1 x HDMI type A
HDBaseT: 1 x RJ45 | | Supported Resolution | HDMI:
Up to 3840 x 2160 at 30 fps
VGA:
Up to 1920 x 1080 at 60 fps | | Transmission Distance | HDMI:
3840 x 2160/30: 115' (35 m)
1920 x 1080/60: 230' (70 m)
VGA:
1920 x 1080/60: 230' (70 m)
The independent audio can also be transmitted 230' (70 m) | | HDCP Compliant | Yes | | Enclosure | Metal | | Power Supply | 12 VDC | | | | Package Weight | 1.97 lb | | Box Dimensions (LxWxH) | 11.8 x 8.3 x 2.55" |
