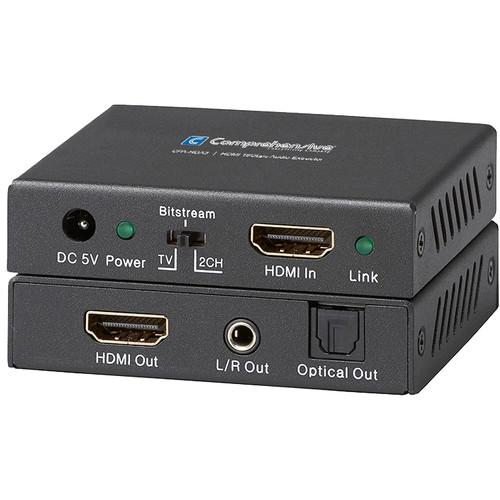

Product description The Comprehensive 4K HDMI Audio Extractor allows you to de-embed audio signals from up to Ultra HD 4K HDMI video sources and output them via digital optical or analog stereo L/R audio outputs. Both the HDMI input and output support up to UHD at 60/50 fps (with up to YUV 4:4:4) and 10-bit HDR pass-through. The original audio also gets passed from HDMI input through HDMI output when you de-embed. Supported audio formats include LPCM 2-channel, Dolby True HD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio. - Key Features
-
- Up to UHD 4K resolution at 60/50 fps (YUV 4:4:4) supported on input and output
- De-embed to multi-channel optical (S/PDIF) or L/R analog audio outputs
- LPCM 2-channel, Dolby Digital 2-channel/5.1-channel, and DTS 2-channel/5.1-channel support via optical audio output
- High resolution digital audio bypass
- High Bit Rate (HBR) HDMI audio pass-through
- Audio sample rates up to 192 kHz
- CEC bypass
- Bit stream audio switching
- HDMI 2.0b (18 Gb/s)
- HDCP 2.2 compliant
- DVI compliant
- RoHS certified
UPC: 808447079074 In the Box Comprehensive 4K HDMI Audio Extractor 5V/1A Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 4K HDMI Audio Extractor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

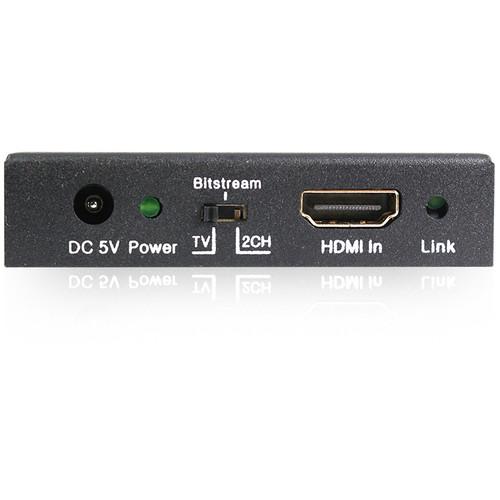

Technical parametersComprehensive CPA-HDA3 Specs | Supported Resolution | Up to 3840 x 2160 at 60/50 fps (YUV 4:4:4) | | Inputs | HDMI: 1 x HDMI type A | | Outputs | HDMI: 1 x HDMI type A

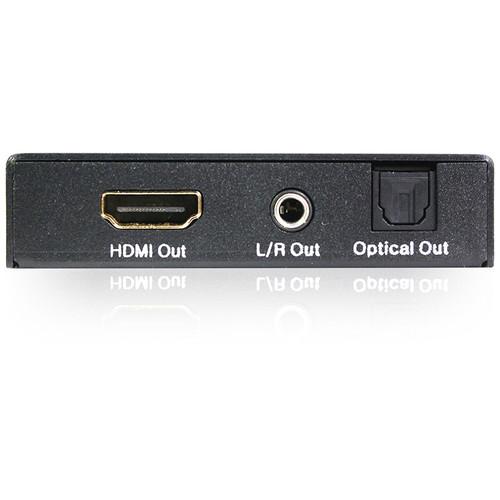

Stereo Analog Audio: 1 x 3.5 mm
S/PDIF: 1 x optical | | HDMI Compliance | HDMI 2.0b | | Bandwidth | 18 Gb/s | | Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 | | Color Depth | 10-bit, 12-bit | | HDCP Compliance | HDCP 2.2 / HDCP 1.4 | | Audio Formats Supported | HDMI Pass-Through:
LPCM 2-channel/5.1-channel/7.1-channel, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio:
LPCM 2-channel, LPCM 5.1, Dolby Digital 2-channel/5.1-channel, DTS 2-channel/5.1-channel
L/R Audio:
Analog stereo 2-channel | | Chassis | Metal | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 5 VDC, 1 A (US/EU standards, CE/FCC /UL certified) | | Power Consumption | 1 W (max) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 - 90% RH (non-condensing) | | Dimensions | 2.9 x 2.6 x 0.7" (7.4 x 6.7 x 1.7 cm) | | Weight | 0.3 lb (130 g) | | | | Package Weight | 0.51 lb | | Box Dimensions (LxWxH) | 4.4 x 3.5 x 2.65" |
