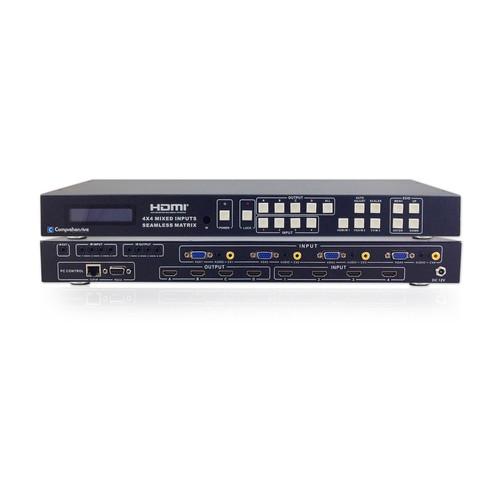

Product description The Comprehensive 4x4 Multi-Input Seamless Matrix Switch combines four digital video and four analog video signals. The switch uses digital technology with scaler function and applies a variety of formats to achieve a unified output signal, while seamlessly distributing visual effects. It also supports analog video signal inputs with embedded audio function. In addition, the switch can be operated easily through on-panel buttons, IR remote controller, RS-232, or IP control. - HDMI 1.3, HDCP 1.3, and DVI 1.0
- Video inputs include four HDMI, four VGA, and four component video
- Supports input resolutions up to 1920 x 1080p @ 60 Hz
- Supports output resolutions up to 1920 x 1080p @ 60 Hz
- Supports seamless switching outputs
- Optional seamless switching mode: Fast switching, fade in/fade out, and blinds
- Supports RS-232, remote control, on-panel control, and TCP/IP control
- Supports smart EDID management
UPC: 808447078558 In the Box Comprehensive 4x4 Multi-Input Seamless Matrix Switch with Video Wall Function Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive 4x4 Multi-Input Seamless Matrix Switch with Video Wall Function in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CSW-HD455KM Specs | Video Bandwidth | Up to 10.2 Gb/s | | Input Ports | 4 x HDMI
4 x VGA
4 x RCA, composite video
1 x RS-232
1 x RJ45, control
5 x IR
4 x 3.5 mm, stereo audio | | Output Ports | 4 x HDMI
5 x IR | | Power Supply | 12 VDC, 2.5 A | | Power Consumption | 13.5 W maximum | | Input Resolutions | Up to 1920 x 1080p @ 60 Hz | | Output Resolutions | Up to 1920 x 1080p @ 60 Hz | | Front Panel Buttons | IR, RS-232, TCP/TP | | ESD Protection | ± 8 kV (air-gap discharge)
Human Body Model: ± 4 kV (contact discharge) | | Chassis Material | Metal | | Dimensions (W x D x H) | 17.5 x 8.0 x 1.8" / 44.5 x 20.3 x 4.6 cm | | Weight | 5.3 lb / 2.4 kg | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 20.9 x 12.8 x 4.7" |
