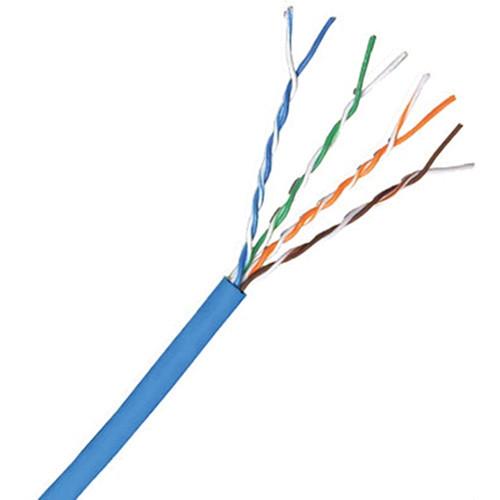

Product description The Comprehensive Cat 5e 350 MHz Solid Cable - 1000' (Blue) is a local area network cable that has 4 unshielded twisted pairs and is made of solid 24 AWG construction. This bulk cable is ideal for your network installation. It is the right solution for wiring your home, office or the entire campus. The cable is has a PVC rated jacket and can be installed just about anywhere. The cable features a UL/NEC rating of CMR/MPR. It has a nominal outside diameter of 0.2" (5.08mm). The cable meets all the requirements as set forth in the Telecommunications Industry Association's standard 568 and 570 recommendations. - The cable is a 4 pair unshielded twisted pair cable
- It has 24 AWG solid copper conductors
- The cable meets or exceeds Cat 5e specifications
- The cable, rated to 350 MHz, provides additional performance and bandwidth over and above the basic requirements of Cat 5e 100 MHz standards
- It features high-density polyethylene insulation as well as a PVC jacket
- This foot-marked cable is packaged in a EZ pull box
- The cable is ideal for 10Base-T (IEEE 802.3), 100Base-TX (IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN (IEEE 802.12), Token Ring (IEEE 802.5), TP-PMD (ANSI X3T9.5), 350 Mbps CDDI, ATM 155, Voice and Multimedia
- The Cat 5e 350 MHz cable is CMR/MPR rated for use in walls and conduits in ceiling
- It is also a verified compliant with EIA/TIA standards by ETL and is CSA listed
UPC: 808447059908 In the Box Comprehensive Cat 5e 350 MHz Solid Cable - 1000' (Blue) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Cat 5e 350 MHz Solid Cable - 1000' in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive C5E350B-1000 Specs | Conductors | 4 twisted pairs 24 AWG solid copper cable | | Bandwidth | Supports voice/data/video distribution applications up to 350 MHz | | Standards | Meets all Cat 5e TIA/EIA standards, verified to EIA/TIA 568B.2 | | Conductor DC Resistance | 89 ohm/km (maximum) | | Insulation Resistance | 100 ohm/km (minimum) | | Outer Diameter | 0.21" (5.3 mm) | | UL Rating | CMR/MPR | | Jacket | PVC | | Outer Jacket Color | Blue | | RoHS Compliant | Yes | | Length | 1000.0 ft / 304.8 m | | Weight | 27 lb (12.25 kg) | | | | Package Weight | 22.2 lb | | Box Dimensions (LxWxH) | 15.0 x 14.5 x 8.5" |
