User Manual for Comprehensive Cat 5e 350 MHz Stranded Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive Cat 5e 350 MHz Stranded
- Product category: Bulk Ethernet Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Bulk Ethernet Cables
|
User manual for the Comprehensive Cat 5e 350 MHz Stranded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|

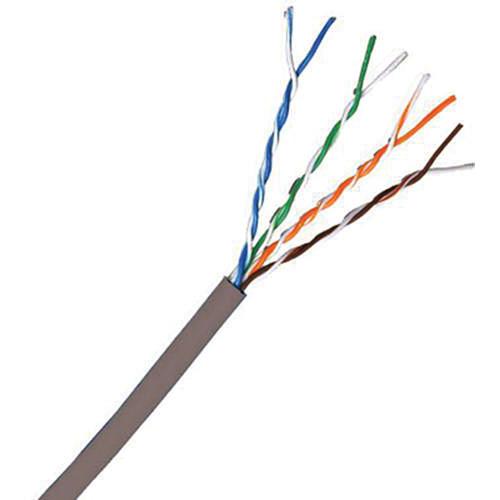

Product description The Comprehensive Cables Cat 5e 350 MHz Stranded Cable (1000' / 304.8m, Gray Finish) is a 24 AWG stranded Cat5e bulk cable featuring 4 unshielded twisted pairs, and is highly flexible and easy to use. This cost-effective cable is designed to meet and exceed the specifications of today's high speed networks. Easily terminate your own patch cables with the color-coded conductors. It can meet all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations. - 4-pair unshielded twisted pair cable
- 24 AWG solid bare copper conductor
- Meets or exceeds Cat5e specifications
- Rated to 350 MHz to provide additional performance and bandwidth
- Satisfies the basic requirements of Cat5e 100 MHz standards
- High-density polyethylene insulation, PVC jacket
- Foot-marked cable packaged in EZ pull box
- Ideal for 10Base-T (IEEE 802.3), 100Base-TX (IEEE 802.3u), 1000Base-TX, 100 Vg- AnyLAN (IEEE 802.12), Token Ring (IEEE 802.5), TP-PMD (ANSI X3T9.5), 350 Mbps CDDI, ATM 155, Voice, and Multimedia
- CM / CMR rated for use in walls and conduit in ceiling
- Verified compliant with EIA / TIA standards by ETL
- UL listing NEC, CM / MP, CSA listed
UPC: 808447060119 In the Box Comprehensive Cat 5e 350 MHz Stranded Cable (1000' / 304.8m, Gray Finish) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Cat 5e 350 MHz Stranded Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive C5E350STG-1000 Specs | Conductors | 4 twisted pairs 24 AWG shielded bare copper stranded cable | | Bandwidth | Supports voice/data/video distribution applications up to 350 MHz | | Standards | Meets all Cat5E TIA/EIA standards, verified to EIA/TIA 568B.2 | | Conductor DC Resistance | 89 Ω /km (maximum) | | Insulation Resistance | 100 Ω/km (minimum) | | Nominal O.D | 0.2" (5.08 mm) | | Outer Diameter | 0.20" (5.3 mm) | | UL Rating | CMR | | Jacket | PVC | | RoHS Compliant | Yes | | Weight | 27 lb (12.24 kg) | | | | Package Weight | 23.3 lb | | Box Dimensions (LxWxH) | 12.5 x 12.3 x 12.2" |
