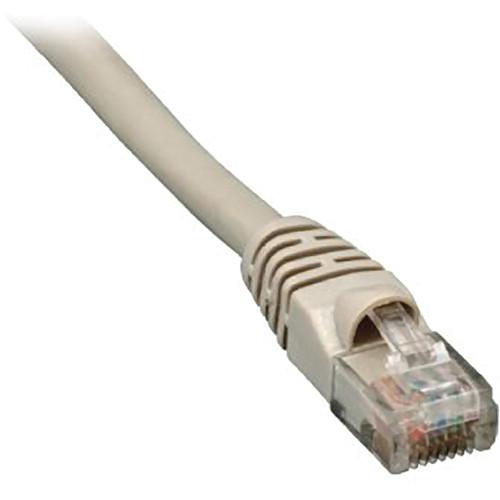

User Manual for Comprehensive CAT5e 350 MHz Crossover Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive CAT5e 350 MHz Crossover Cable
- Product category: Ethernet Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Ethernet Cables
|
User manual for the Comprehensive CAT5e 350 MHz Crossover Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description The gray Comprehensive CAT5e 350 MHz Crossover Cable allows you to connect your computer peer-to-peer and get 350 MHz of bandwidth. By reversing the transmit and receive pairs on one end of the cable, you can connect computers directly to each other without a hub. This 75' cable is also ideal for adding hubs without a crossover port. - Connector: 50 µ gold-plated RJ-45 male to male
- Conductor: 4-pair 24 AWG stranded copper
- Applications: 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token, Ring (IEEE 802.5); 100 VG-Any LAN, and 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
- Designed for network adapters, hubs, switches, routers, DSL / cable modems, patch panels, and twisted-pair applications
- Exceeds Category 5e specifications
- Wired: TSB 568B (AT&T 258A)
- Certifications: TIA / EIA
UPC: 808447053265 In the Box Comprehensive CAT5e 350 MHz Crossover Cable (75', Gray) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CAT5e 350 MHz Crossover Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CAT5E-X-75GRY Specs | Connector | Type 1 & 2: RJ45 male | | Conductor | 4 twisted pairs, 24 AWG bare copper stranded cable | | Performance Grade | Good | | Bandwidth | Supports voice / data / video distribution applications up to 350 MHz | | Standards | Meets all CAT5E TIA / EIA standards, verified to EIA / TIA 568B.2 | | Cable | Style: Assembled connectors, no boot | | Conductor DC Resistance | 89 Ω/km (maximum) | | Insulation Resistance | 100 Ω/km (minimum) | | Material | Connector: Polycarbonate
Contact: Copper alloy plated with 50 µ gold | | Outer Diameter | 0.2" / 5.3 mm | | Jacket | PVC | | RoHS Compliant | Yes | | Length | 75.00' / 22.86 m | | Weight | 1.5 lb / 0.68 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.2 x 6.2 x 2.4" |
