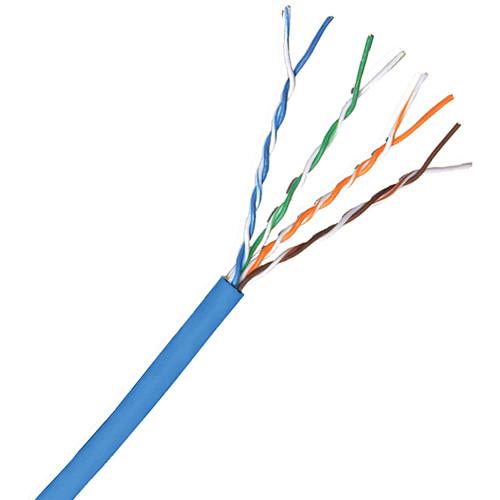

Product description The 1,000’, blue CAT5e 350 MHz Shielded LAN Cable from Comprehensive features 4 shielded twisted pairs with solid 24 AWG conductors, and is suitable for installation in high EMI/RFI environments. This 350 MHz cable has a PVC jacket and can be installed in a variety of environments. It is suitable for network wiring in your home, office, or an entire campus. Exceeding CAT5e 100 MHz standards, this LAN cable meets all requirements as set forth in the Telecommunications Industry Association's standard 568 & 570 recommendations. The foot-marked cable is packaged in a pull box for easier installation. - 4-pair shielded twisted pair cable
- 24 AWG solid bare copper conductors
- Meets or exceeds CAT5e specifications
- Rated to 350 MHz to provide additional performance and bandwidth over and above the basic requirements of CAT5e 100 MHz standards
- High-density polyethylene insulation, PVC jacket
- Foot-marked cable packaged in EZ pull box for easier installation
- Suitable for 10Base-T (IEEE 802.3), 100Base-TX (IEEE 802.3u), 1000Base-TX, 100 Vg-AnyLAN (IEEE 802.12), Token Ring (IEEE 802.5), TP-PMD (ANSI X3T9.5), 350 Mb/s CDDI, ATM 155, voice and multimedia
- CM/CMR rated for use in walls and conduit in ceiling
- Verified to be compliant with EIA/TIA standards by ETL
UPC: 808447068214 In the Box Comprehensive CAT5e 350 MHz Shielded Solid LAN Cable (1,000', Blue) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive CAT5e 350 MHz Shielded Solid LAN Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive C5E350SHBLU-1000 Specs | Conductors | 4 x twisted pair, 24 AWG, shielded bare copper solid cable | | Bandwidth | Supports voice/data/video distribution applications up to 350 MHz | | Standards | Meets all CAT5e TIA/EIA standards, Verified to EIA/TIA 568B.2 | | Conductor DC Resistance | 89 Ω/km (maximum) | | Insulation Resistance | 100 Ω/km (minimum) | | Outer Diameter | 0.24" (6.10 mm) | | UL Rating | CMR | | Jacket | PVC | | Compliance | RoHS | | Electrical | Temperature rating: 167°F (75°C)
Spark test: 2,000 VAC/0.15 sec minimum
Dielectric strength: AC 750 V/sec minimum
Insulation resistance: PE: 500 VDC 1500 MW/100 m minimum at 68°F (20°C) | | Capacitance | Mutual capacitance: 5.6 nF/100 m, maximum
Pair to ground Unbalance: 330 pF/100 m, maximum
DC Resistance: 9.38 Ω/100 m at 68°F (20°C) maximum
DC Resistance Unbalance: 5%, maximum
Impedance: 100 ± 15 Ω at 100 to 350 MHz | | Length | 1,000' (305 m) | | Weight | 27 lb (12 kg) | | | | Package Weight | 26.95 lb | | Box Dimensions (LxWxH) | 14.646 x 14.173 x 9.291" |
