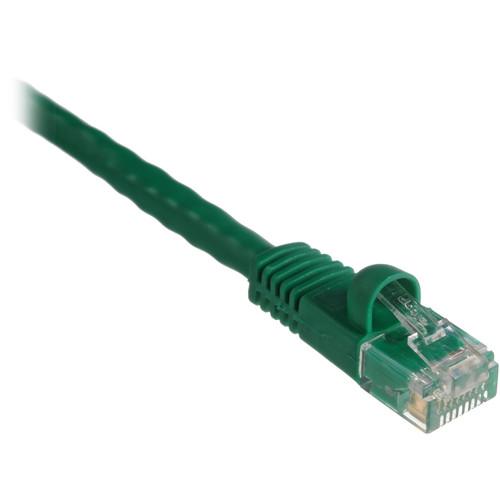

Product description The green Cat5e 350 MHz Snagless Patch Cable from Comprehensive is an Ethernet patch cable, suitable for use in professional network installations. It features a male-to-male design, using standard gold-plated RJ-45 connectors on each end. The cable's 350 MHz speed reduces loss when compared to standard a 100 MHz cable. It is suitable for use in Gigabit Ethernet and high speed Ethernet networks. Comprehensive CAT5E 350 Mhz Snagless Patch Cables have a molded low profile and a snagless boot that makes installing these cables quick and easy - Gold-plated RJ-45 connectors
- CAT5E cable meets high-speed 350 MHz standard
- Features 24awg 4-pair twisted pair construction
- Compliant with all 568A and 568B TIA/EIA standards
- Snagless boot design ensures easy installation
- X-traflex jacket is strong and flexible
- Backed by a Limited Lifetime Warranty
UPC: 808447025057 In the Box Comprehensive Cat5e 350 MHz Snagless Patch Cable (100', Green) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Cat5e 350 MHz Snagless Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CAT5-350-100GRN Specs | Connector 1 | RJ-45 (Male, Gold-Plated) | | Connector 2 | RJ-45 (Male, Gold-Plated) | | Cable Type | Cat5e Ethernet | | Length | 100' / 30.5 m | | Performance Grade | Good | | Bandwidth | Supports voice/data/video distribution applications up to 350 MHz | | Standards | Meets Cat5E TIA/EIA standards, Verified to EIA/TIA 568B.2 | | Cable | Style: Molded snagless boot | | Conductors | 4 Twisted pairs 24 AWG bare copper stranded cable | | Conductor DC Resistance | 89 Ω/km (maximum) | | Insulation Resistance | 100 Ω/km (minimum) | | Material of Construction | Connector: Polycarbonate
Contact: Copper alloy plated with 50u gold | | Outer Diameter | 0.2" / 5.3 mm | | Compatibility | 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3), 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN 100 Mbps, TP-PMD (ANSI X3T9.5); 55/155Mbps ATM; Voice | | RoHS Compliant | Yes | | Jacket | PVC | | Weight | 1.50 lb / 0.68 kg | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 7.2 x 6.5 x 2.3" |
