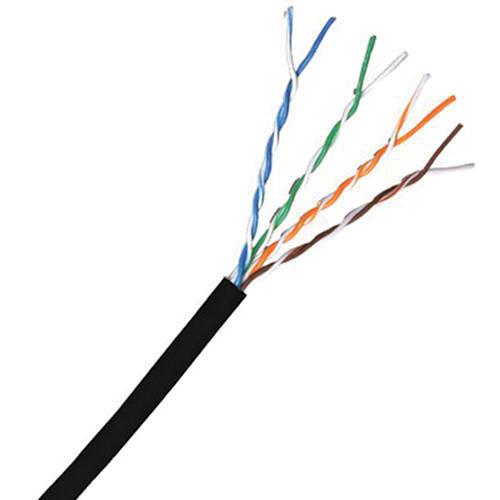

User Manual for Comprehensive Cat6 550 MHz Shielded Stranded LAN Cable Click to enlarge the picture
Contents of the user manual for the Comprehensive Cat6 550 MHz Shielded Stranded
- Product category: Bulk Ethernet Cables Comprehensive
- Brand: Comprehensive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comprehensive Bulk Ethernet Cables
|
User manual for the Comprehensive Cat6 550 MHz Shielded Stranded contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comprehensive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comprehensive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comprehensive product will considerably shorten its lifespan!
|
Product description Designed for 550 MHz high-speed data applications, such as 100BASE -TX, 100BASE-VG, and 155 ATM, as well as high-speed applications, such as 622 ATM, Wideband, Ethernet 1000BASE-T, and emerging applications with anticipated data rates to 3.2 Gbps, the black Cat6 550 MHz Shielded Stranded LAN Cable from Comprehensive comes in 1,000' lengths marked off in one foot increments; so you can make cables of any length as needed. It is packaged in a simple pull-through designed box to keep this bulk cable free of kinks and knots. It follows the Cat6 standard and has been constructed using four shield twisted pairs wrapped in a sturdy PVC (polyvinyl chloride) jacket that perform well in noisy environments, feature strong attenuation and crosstalk characteristics, as well as 24 AWG stranded bare copper conductors. General Features - High-performance data communications cable for noisy environments
- Suitable for 550 MHz high-speed data applications, Gigabit Ethernet, fast Ethernet, and 155 Mbps TP-PMD/CDDI
- Cat6 Shielded Twisted Pair (FTP) cable
- The cable has four shielded twisted pairs that are easily identifiable as they are color-striped
- 24 AWG stranded bare copper conductors
- Good attenuation and crosstalk characteristics
- Exceeds EIA/TIA 568 B.2-1, UL, CSA, and ISO/IEC 11801 specifications
UPC: 808447068344 In the Box Comprehensive Cat6 550 MHz Shielded Stranded LAN Cable (Black / 1,000') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comprehensive Cat6 550 MHz Shielded Stranded LAN Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComprehensive CAT6SHSTBLK-1000 Specs | Conductors | 4 Twisted Pairs 24 AWG Shielded bare copper stranded cable | | Bandwidth | Supports voice/data/video distribution applications up to 550 MHz | | Standards | Meets all Cat6 TIA/EIA standards, Verified to EIA/TIA 568B.2 | | Conductor DC Resistance | 9.8 Ohms; at 328'/ 100 m maximum | | UL Rating | CMR | | Jacket | PVC (black) | | Electrical | Temperature rating: 167°F / 75°C
Spark test: 2,000 VAC/0.15 sec minimum
Dielectric strength: 750 VAC / 1 sec minimum
Insulation resistance: PE: 500 VDC, 1500 MW / 328' / 100 m minimum at 68°F / 20°C | | Capacitance | Mutual Capacitance: 5.6 nF / 328' / 100 m, maximum
Pair to ground Unbalance: 330 pF / 328' / 100 m, maximum
DC Resistance: 8.76 Ohms / 328' / 100 m at 68°F / 20°C maximum
DC Resistance Unbalance: 5%, maximum
Impedance: 100 ±15 Ohms at 100 to 350 MHz | | Dimensions | Length: 1,000' / 304.8 m
Outer Diameter: 0.26" / 6.60 mm | | Weight | 27.00 lb (12.24 kg) | | | | Package Weight | 29.7 lb | | Box Dimensions (LxWxH) | 15.748 x 15.591 x 8.347" |
